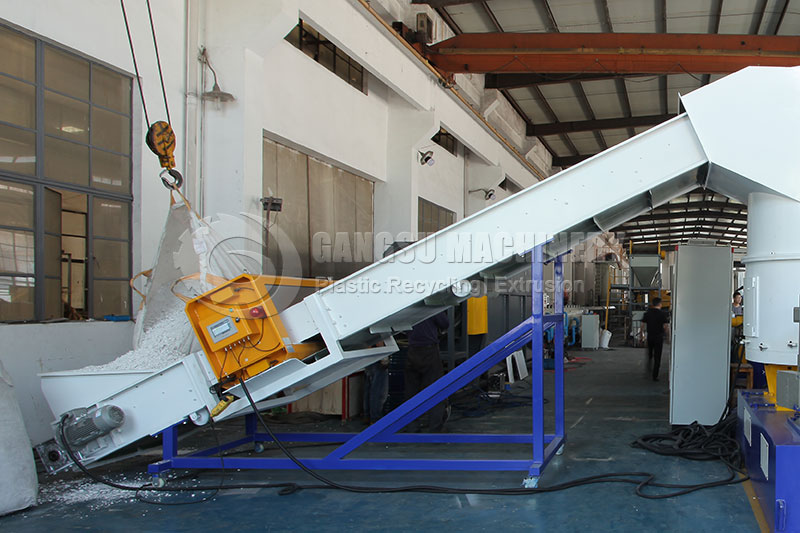

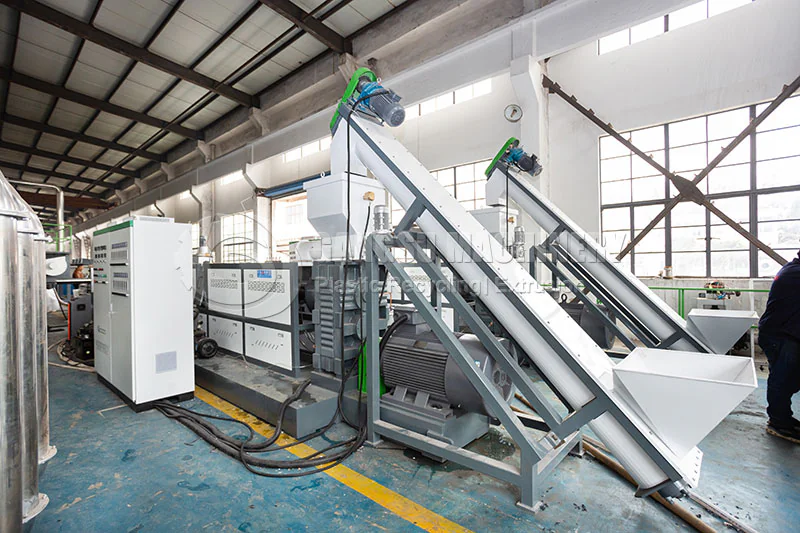

01Screw feeding machine
Used to convey PP/HDPE solid materials to the extruder’s feeding hopper.
Pelletizing · 01
Rigid Scrap Pelletizing Line
We have a dedicated single screw pelletizing line for rigid plastic scrap. The pelletizing process consists of feeding, main screw plasticizing, screen changer filtration, second stage plasticizing, water-ring pelletizing, dewatering and collection.
Output from 200kg/hr up to 1200kg/hr.
Suitable for specialized plastic recycling plants and pelletizing plants, the equipment has many advantages such as low energy consumption, stable output, easy maintenance, long service life and cost-effectiveness.
- Rated output
- 180–1,200 kg/h
- Final product
- Uniform pellets
- Input material
- HDPE, PP
- Delivery
- Turnkey project
- Configured to your material, output and floor space
- English operating manual and remote technical support
- Spare parts supplied during and after warranty

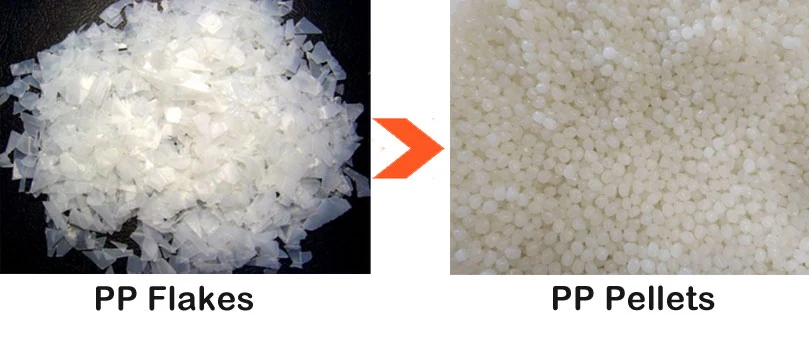

Materials available for processing
Parameter overview
| Machine Model | Auxiliary Engine | Single Screw Extruder | Capacity（kg/h） | |||
|---|---|---|---|---|---|---|
| Granulation Method | Filtering Method | Screw Diameter(mm) | L/D Ratio | Motor(kw) | ||
| ML85-100 | Water/ring/brace | Screen board /no screen filtering | 85 | 28-33:1 | 55-75 | 180-260 |
| 100 | 10:1 | |||||
| ML100-120 | Water/ring/brace | Screen board /no screen filtering | 100 | 28-33:1 | 90-110 | 260-350 |
| 120 | 10:1 | |||||
| ML130-150 | Water/ring/brace | Screen board /no screen filtering | 130 | 28-33:1 | 132-160 | 450-550 |
| 150 | 10-12:1 | |||||
| ML150-160 | Water/ring/brace | Screen board /no screen filtering | 150 | 28-33:1 | 185-200 | 650-750 |
| 160 | 12:1 | |||||
| ML160-180 | Water/ring/brace | Screen board /no screen filtering | 160 | 28-33:1 | 220-250 | 800-1000 |
| 180 | 12:1 | |||||
| ML180-200 | Water/ring/brace | Screen board /no screen filtering | 180 | 28-33:1 | 280-316 | 900-1200 |
| 200 | 12:1 | |||||
Brief description of cleaning process
Cleaning line detail photo set
01

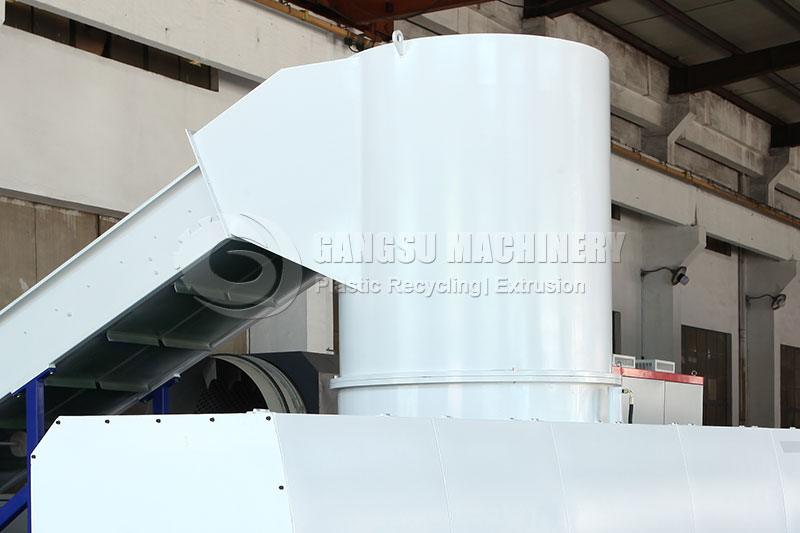

02Dosing feeder
Under the rotation of the internal screw, the material is effectively fed into the extruder mainframe.

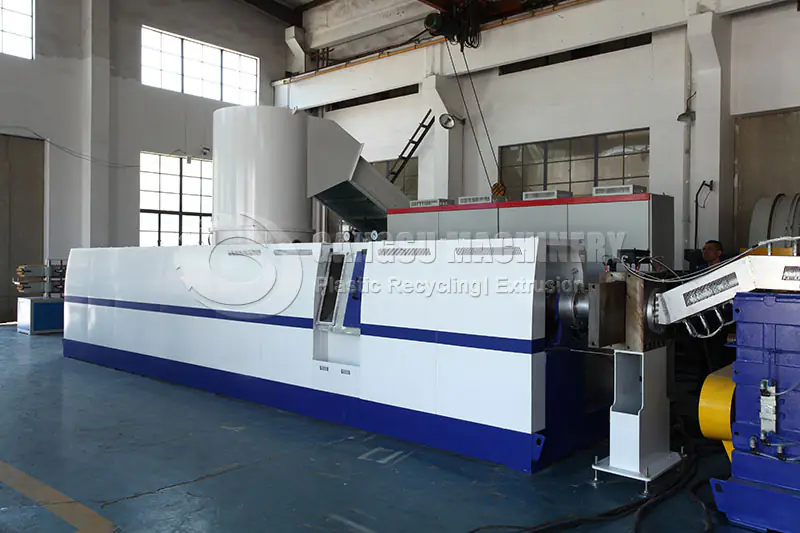

03Mainframe
The material is pushed forward along the internal screw while the plasticizing process takes place.

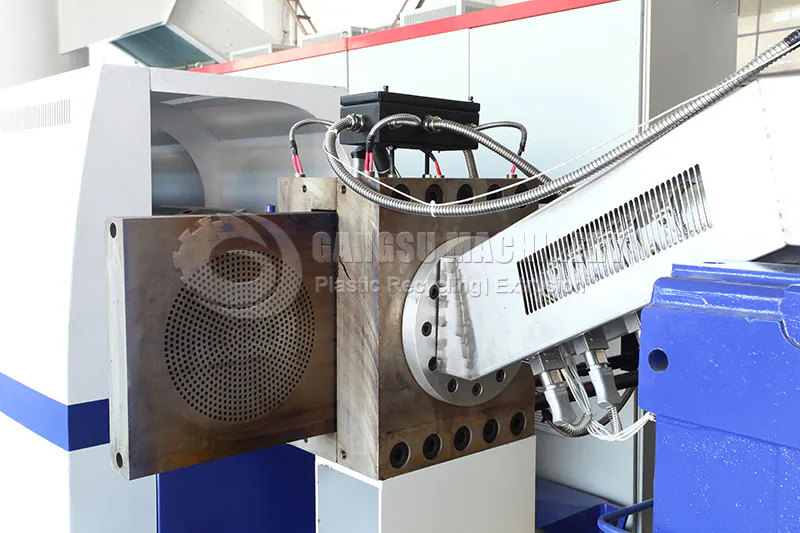

04Meshless Drain Filter
The use is the same as the screen filter, used to filter the impurities in the material and can be automatically discharged, reducing the cost of labor.
05Extruder submachine
Used for caching plasticized materials, stabilizing pressure, and stabilizing production.

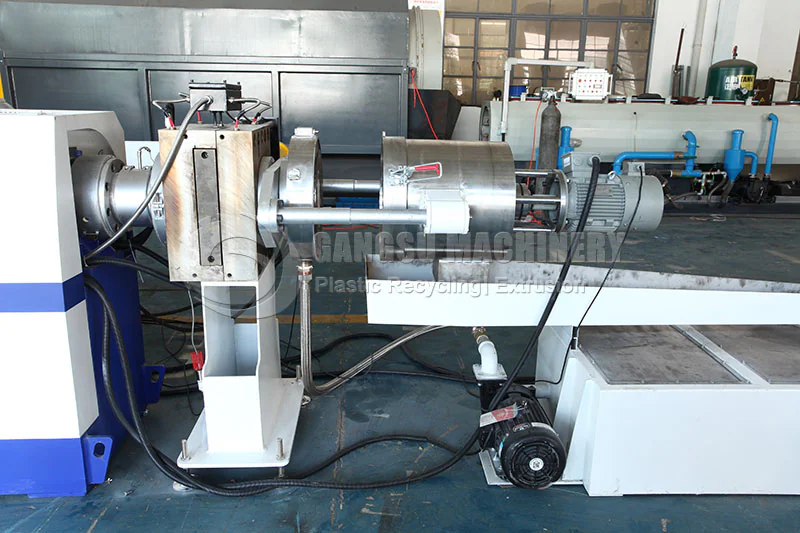

06Screen changer filter
There is a double-station screen changing unit, which can realize the screen changing without stopping, and filter the impurities of the materials in one step to improve the quality of the particles.

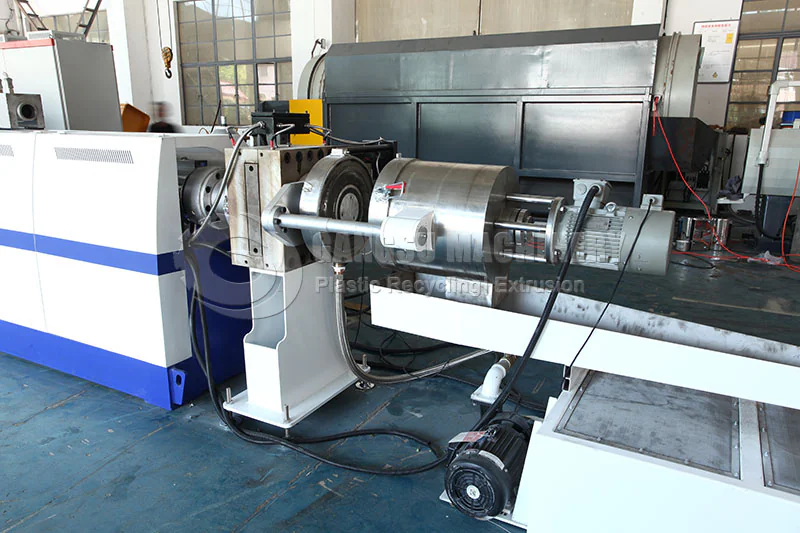

07Water ring cutter
Horizontal water ring pelletizer can cut the melted and plasticized materials into cake-like particles, with the advantages of occupying small space and saving labor.

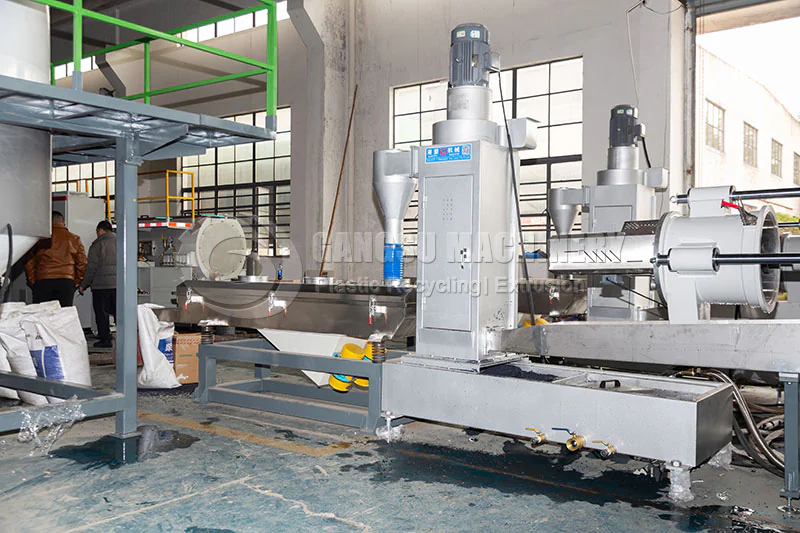

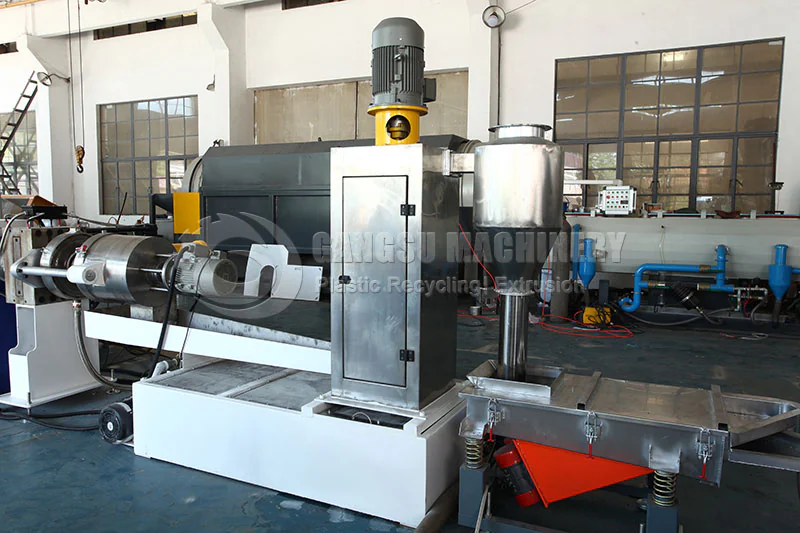

08Dehydrators & Vibrating Screens
For removing water from particles and separating similar sized particles under the action of a vibrating screen.

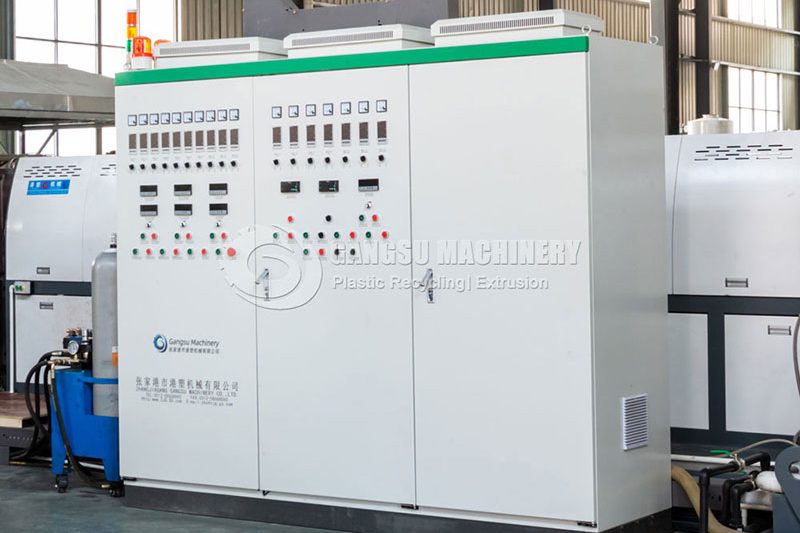

09Control cabinet
For controlling the pelletizing line and observing the operation of each piece of machine.

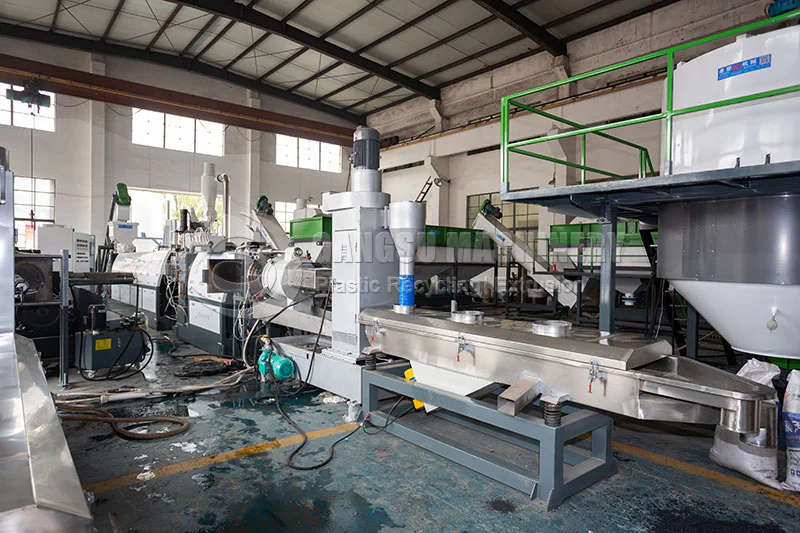

Reference project
Turnkey Project Delivery Case
- MaterialLDPE solid (film after squeezing)
- Output Capacity800-1000KG/H
- ScrewDiameter160/180Φ
- Installation Power220-250KW
- Pelleting MethodWater-ring cutting
GANGSU provides operation manual (English version) to instruct how to maintain and install and operate the machine, if any technical problem, the buyer can communicate with the seller by phone call and email. During warranty period, the seller will change spare parts (except for wearing parts like: blades, heating parts and small electrics etc.) for the buyer when parts worn-out free of charge. GANGSU will deliver the needed parts to you.
02Film & Flake Pelletizing Line
Compactor-fed single-screw pelletizing for film and washed flakes, 200–1,000 kg/h.
LDPE filmPP filmFlakes
03PET Extrusion Pelletizing Line
Strand or underwater pelletizing for PET flakes — up to 40% savings in energy consumption.
PET flakesrPET
