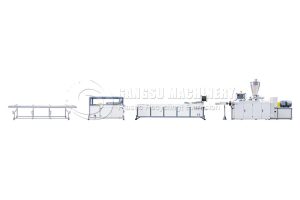

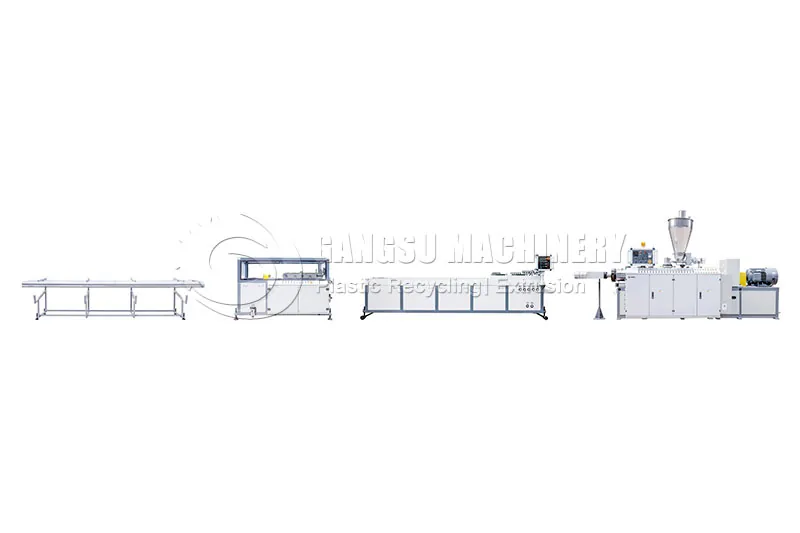

PVC Pipe Extrusion Line

Our company has full range of PVC pipe extrusion line, including four cavity pipe extrusion line, double cavity pipe extrusion line and large diameter pipe extrusion line. Our company will also provide basic formula for PVC pipe production, customer can adjust easily based on the formula. We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC pipes, etc.
Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.

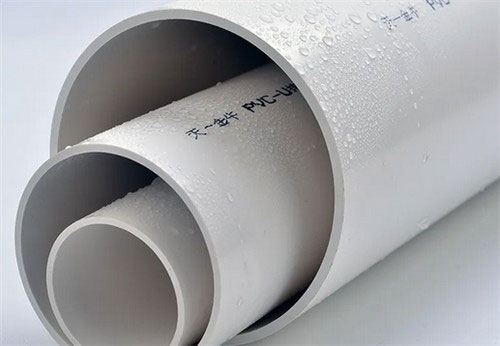

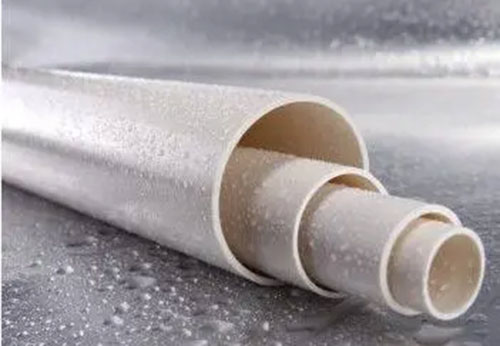

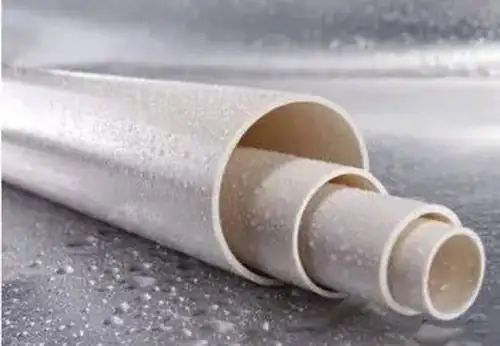

Application for Our PVC Pipe Extrusion Line

Parameter overview

Model	Pipe Range (mm)	Output Capacity (kg/h)	Main motor (kw)
PVC32SS*	16 – 32 x4	180 – 250	22 – 37
PVC63	16 – 63	180 – 250	22 – 37
PVC63S*	16 – 63 x2	250	37
PVC110	20 – 110	250	37
PVC160	50 – 160	250	37
PVC250	75 – 250	450	55
PVC450	110 – 450	450 – 800	55 – 110
PVC630	250 – 630	800	110
PVC800	315 – 800	1000	132
PVC1000	400 – 1000	1200	160
S* means double-strand/cavity, two pipes produced at same time.
SS* means four-strand/cavity, four pipes produced at same time.

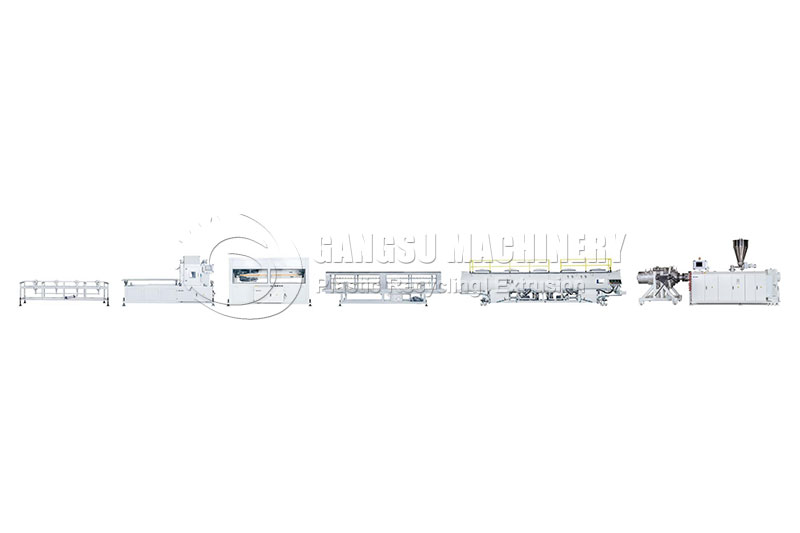

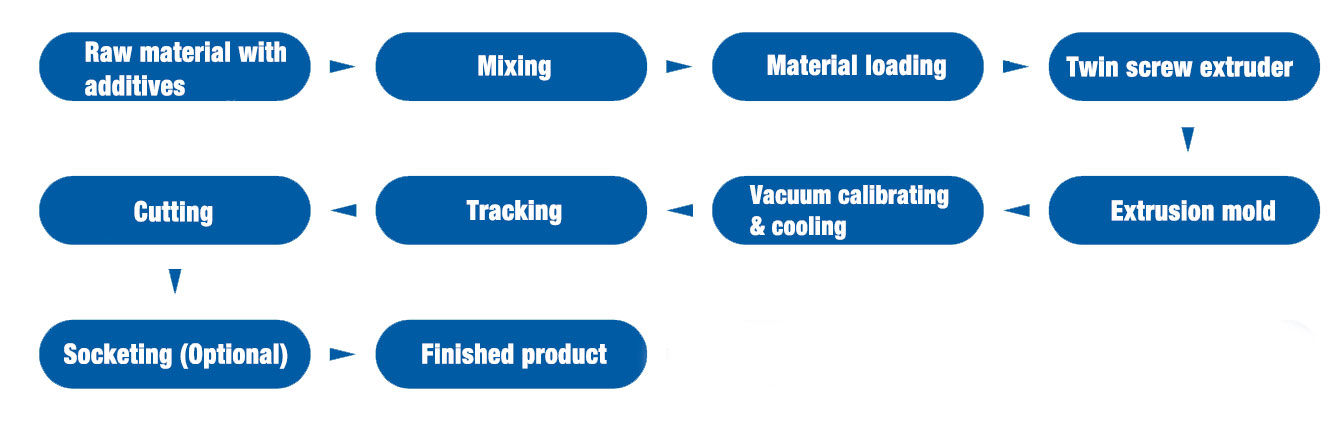

Production equipment and process

Pipe line detail photo set

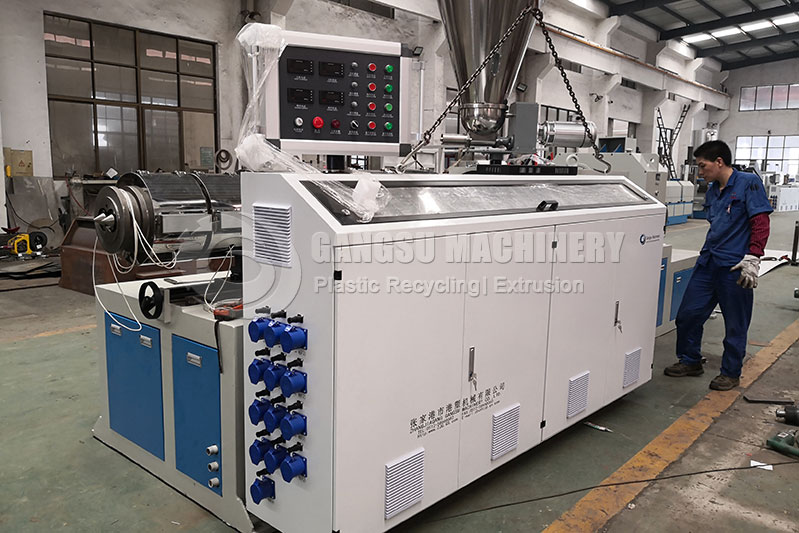

Twin Screw Extruder

Both conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing effect and high capacity.

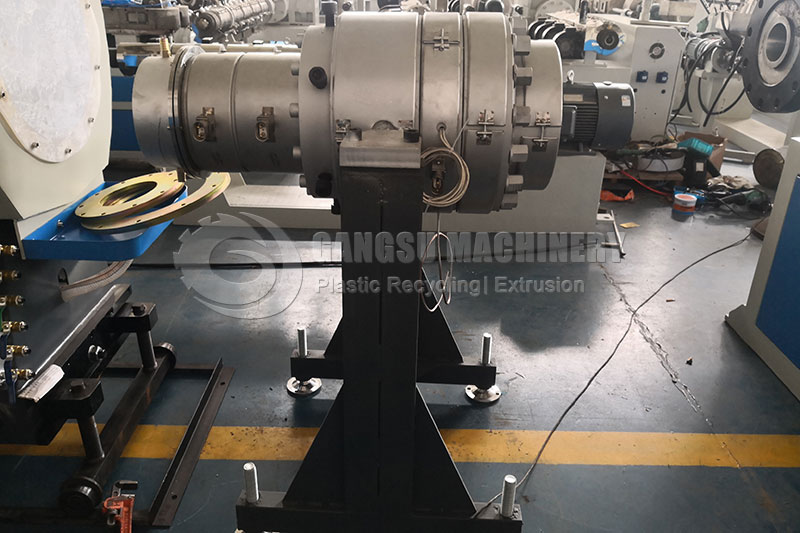

Extrusion Mold

Extrusion mold apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment, mirror polishing and chroming to ensure material flow smoothly. Mold is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. It can produce single layer or multi-layer pipe.

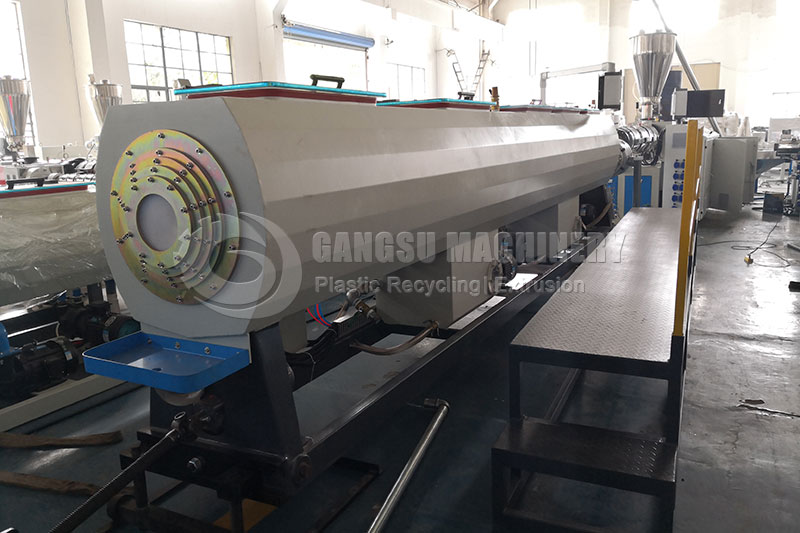

Vacuum Calibration Tank

Vacuum calibration tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.

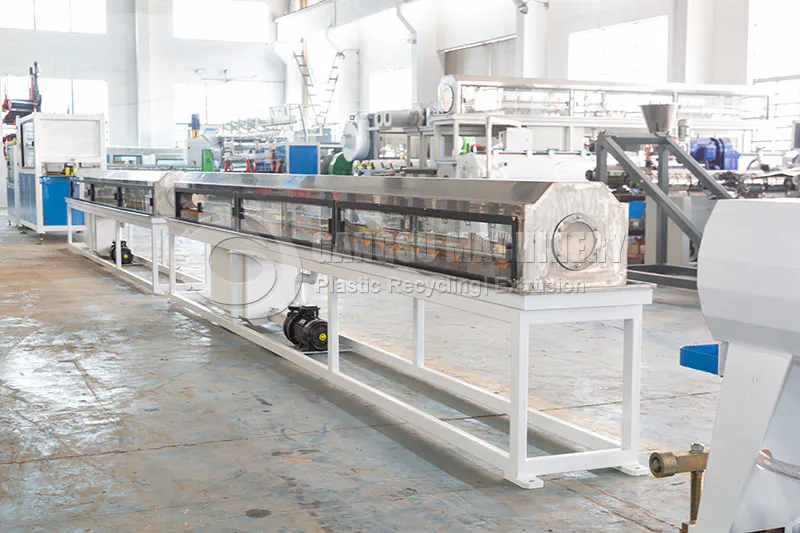

Cooling Tank (Optional)

Cooling tank is used to cool pipe further.

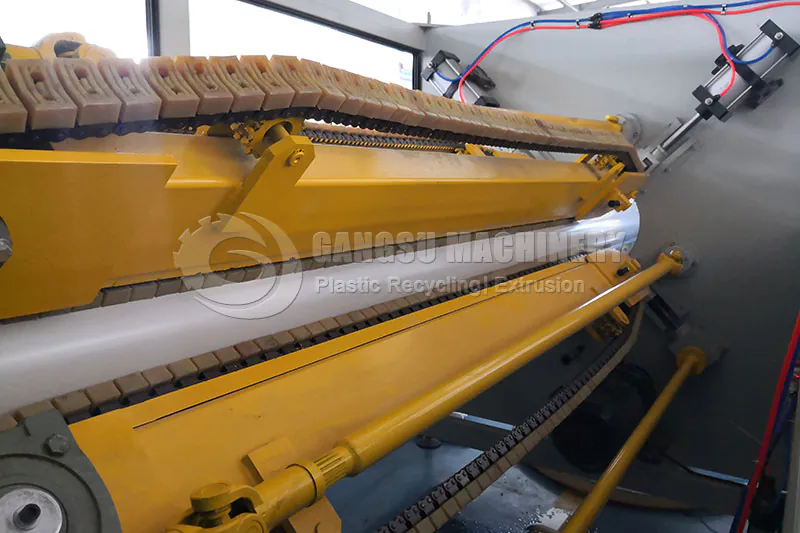

Haul-off Machine

Haul-off machine provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction.

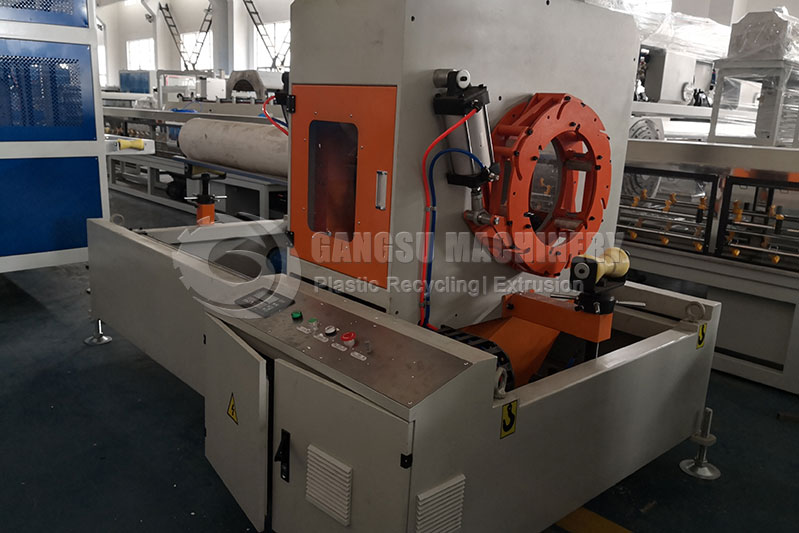

Automatic Cutter

Automatic cutter controlled by PLC, working together with haul-off machine to have precise cutting. Customer can set the length of pipe they want to cut. Multi-feed-in actions for the accomplishment of one cutting process (protect blades and saws, prevent from blade and saws stuck for thick pipe and cut face of pipe is smooth).

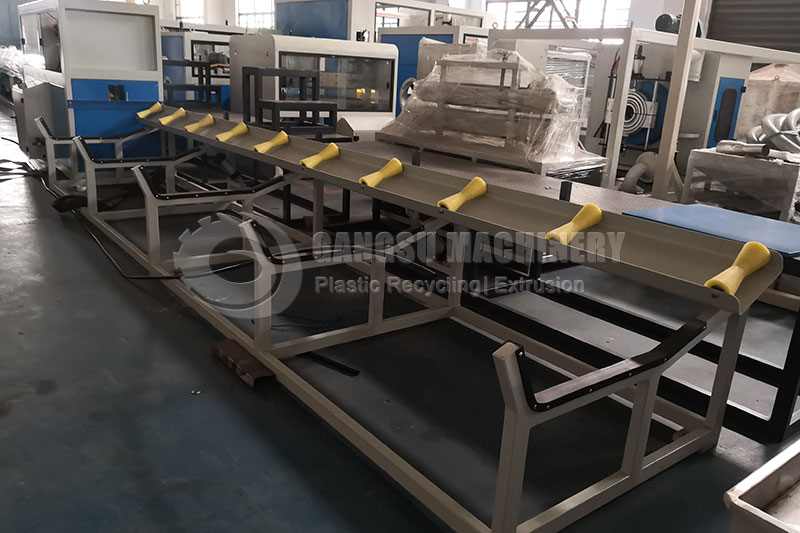

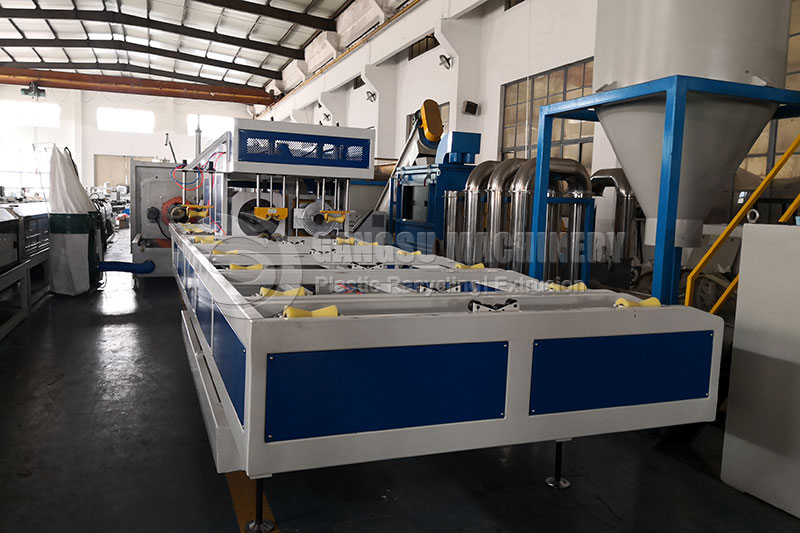

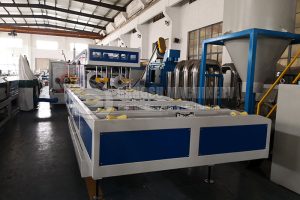

Socketing Machine

To make socket at pipe end which is easy for pipe connection. There are three types of belling type: U type, R type and square type. We provide socketing machine which can finish socketing of pipe on line fully automatic. From minimum size 16mm to maximum size 1000mm, can with multi heating oven and socketing station.

Turnkey Project Delivery Case

Material: LDPE Agricultural Film
Output Capacity: 1000KG/H
Floor Space: 500 m²
Installation Power：725KW
Water Consumption: 35 m²/H

GANGSU provides operation manual (English version) to instruct how to maintain and install and operate the machine, if any technical problem, the buyer can communicate with the seller by phone call and email. During warranty period, the seller will change spare parts (except for wearing parts like: blades, heating parts and small electrics etc.) for the buyer when parts worn-out free of charge. GANGSU will deliver the needed parts to you.
