Washing & Recycling · 07

HDPE Bottle Washing Line

Our specialized HDPE PP recycling line is designed for reprocessing and cleaning HDPE bottles, pails, barrels, and PP pipes. The process includes bale opening, crushing, continuous washing, and drying using friction washing and a dewatering dryer.

The final flakes, with less than 1% humidity, can be directly used in our plastic granulator to make pellets. Our automated HDPE PP rigid recycling equipment, ranging from 1000kg/h to 3000kg/h capacity, minimizes labor costs.

Rated output: 500–6,000 kg/h

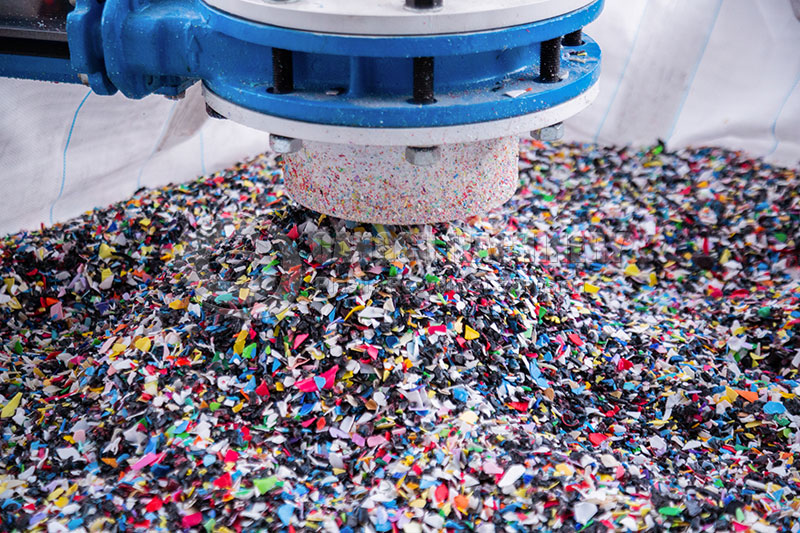

Final product: Clean, dry flakes
Input material: HDPE bottles, Pails
Delivery: Turnkey project

Request a quote View specifications

Configured to your material, output and floor space
English operating manual and remote technical support
Spare parts supplied during and after warranty

Request a quote

01 / MATERIALS

Materials available for processing

Plastic drums and bottles transformed into HDPE flakes

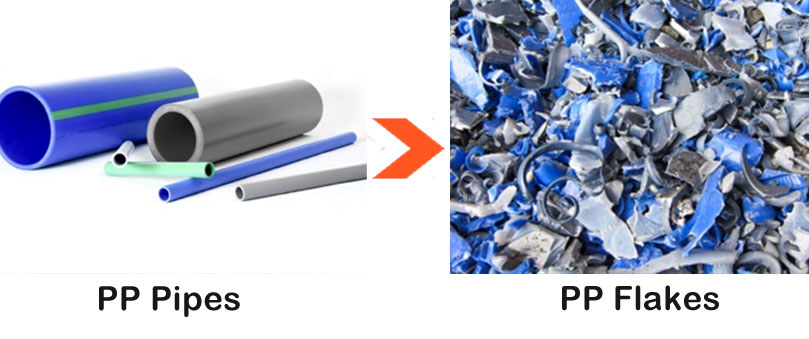

Plastic pipes transformed into PP flakes

02 / SPECIFICATIONS

Parameter overview

Technical specifications · values vary with material and configuration
Output Capacity (kg/h)	Installation Power (kw)	Floor Space(㎡）	Operators	Steam(kg/h)	Water Consumption(m³/h)
500	220	400	8	350	1
1000	500	750	10	500	3
2000	700	1000	12	800	5
3000	900	1500	12	1000	6
4500	1000	2200	16	1300	8
6000	1200	2500	16	1800	10

03 / PROCESS

Brief description of cleaning process

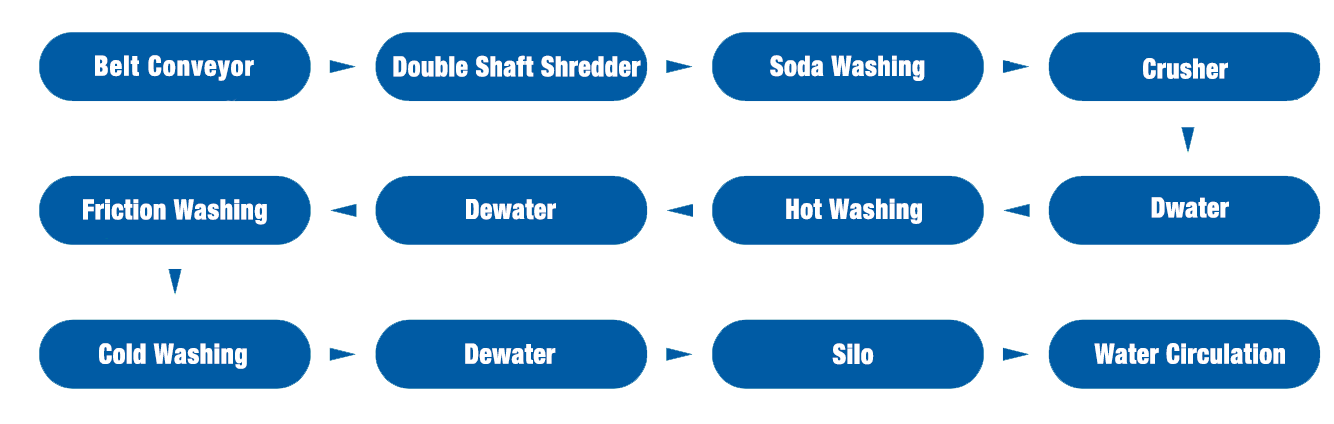

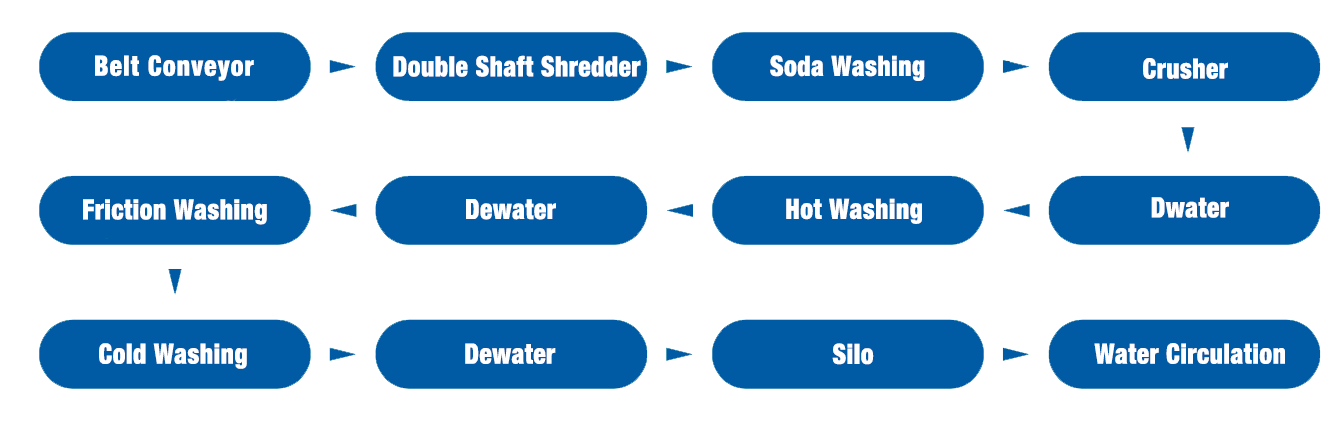

Flow diagram for shredding and washing plastic barrels

04 / EQUIPMENT

Cleaning line detail photo set

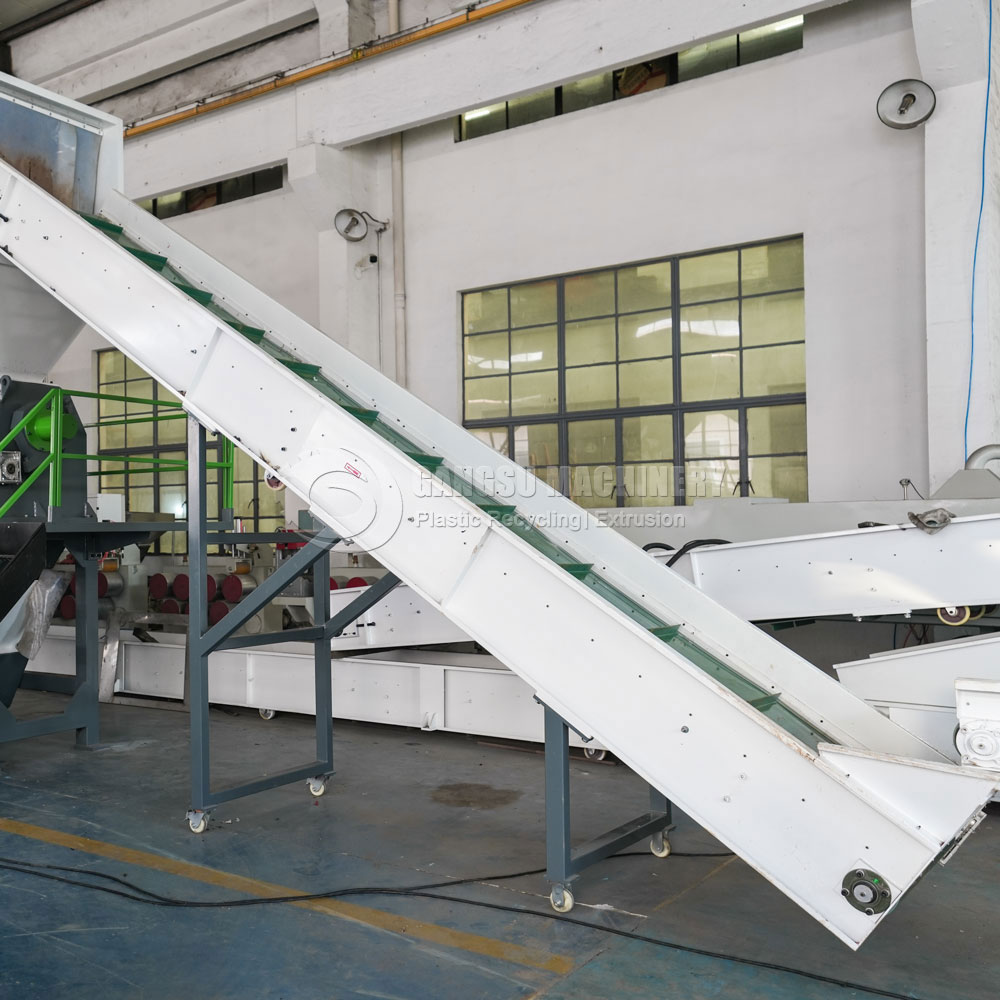

Belt conveyor

Used to convey PP/HDPE solid waste materials to the crusher in the back-end equipment

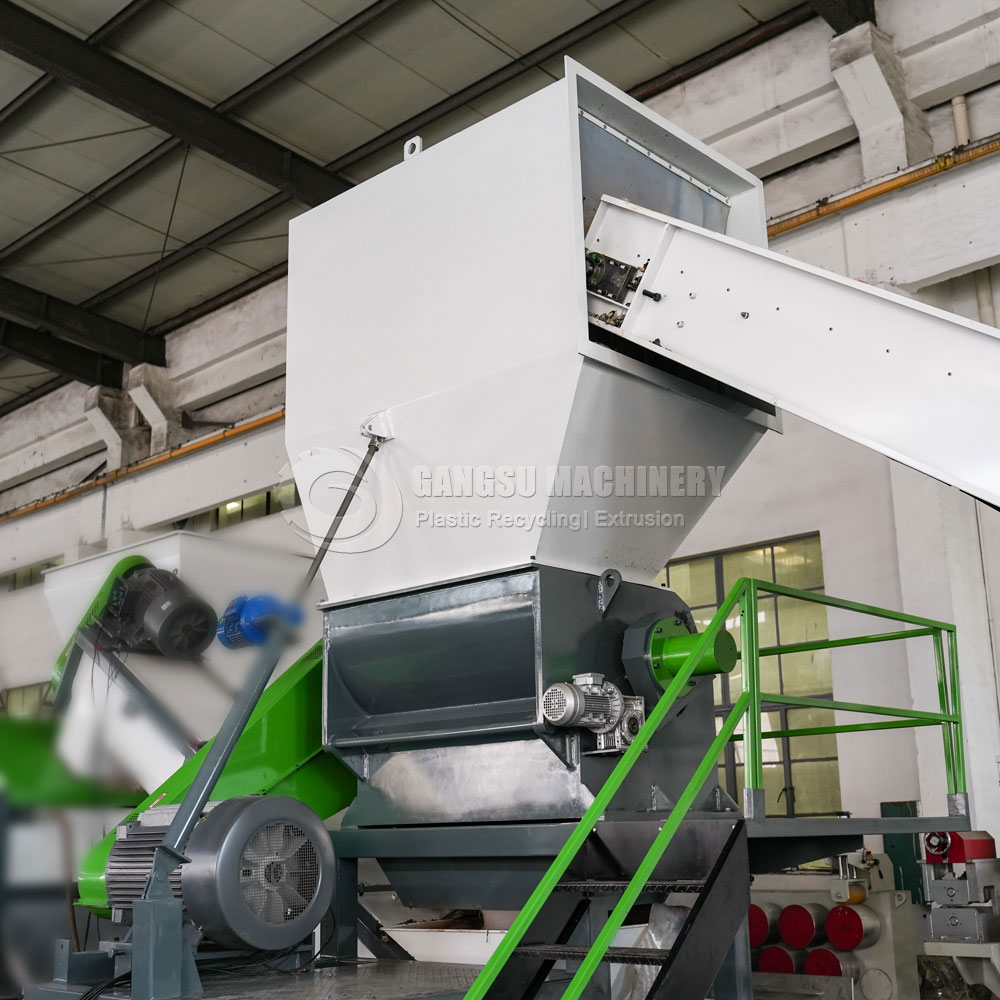

Plastic crusher

Used for crushing PP/HDPE solid waste into 10-20mm flakes

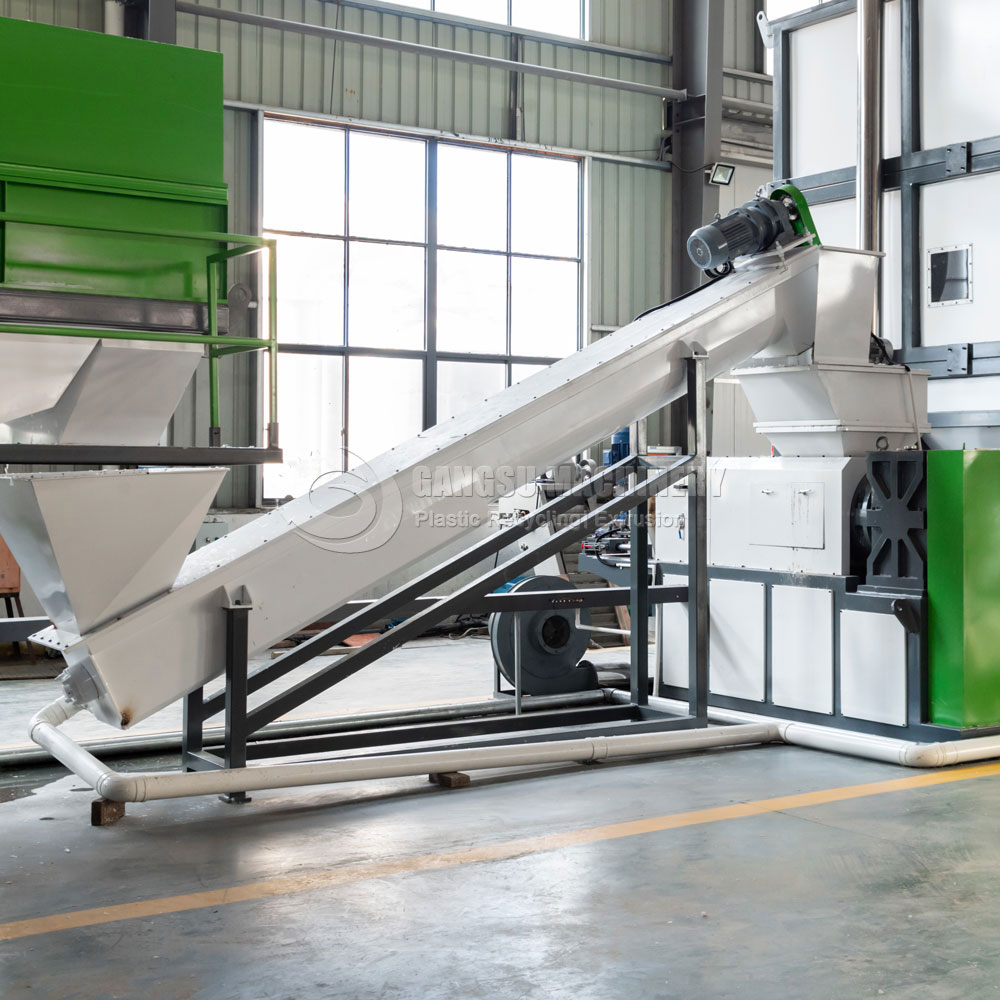

Screw feeder

This equipment is used to transport the rinsed material to the rear equipment

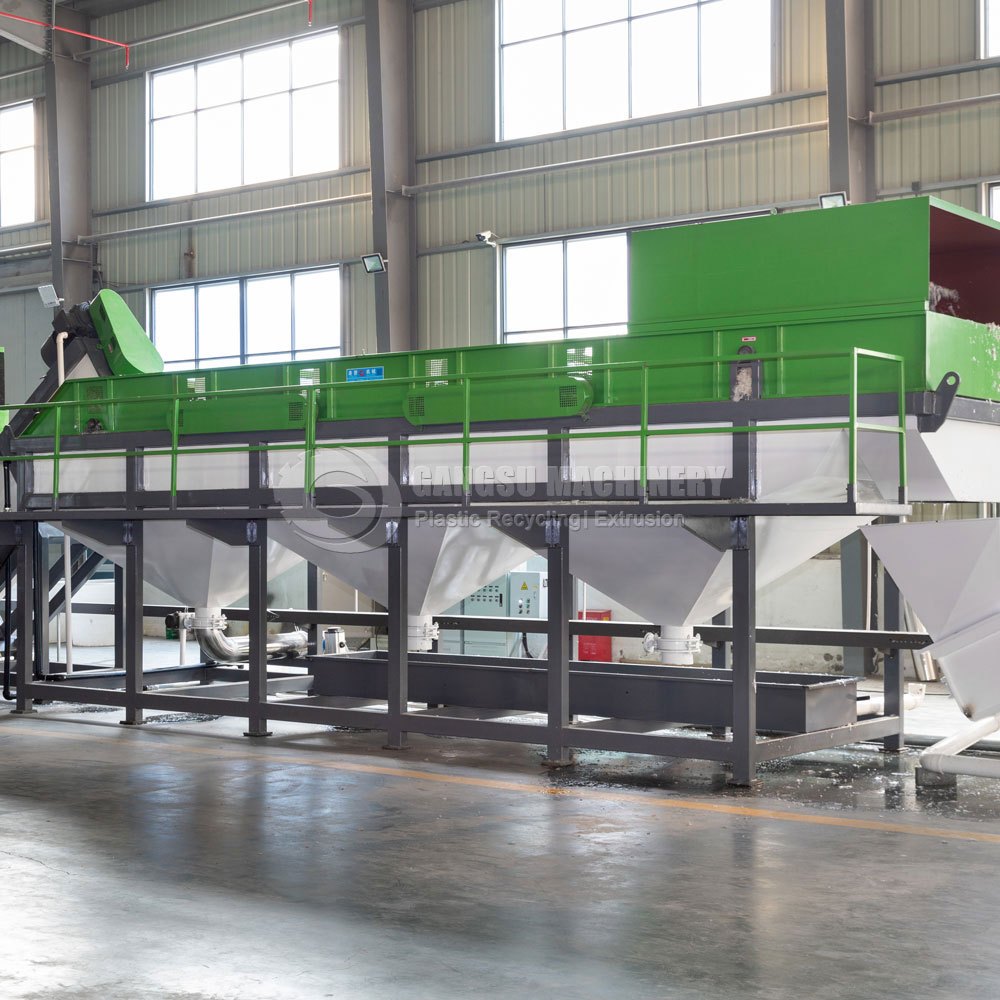

Floating tank

It is used to rinse the material for the first time to separate the sediment impurities in the material

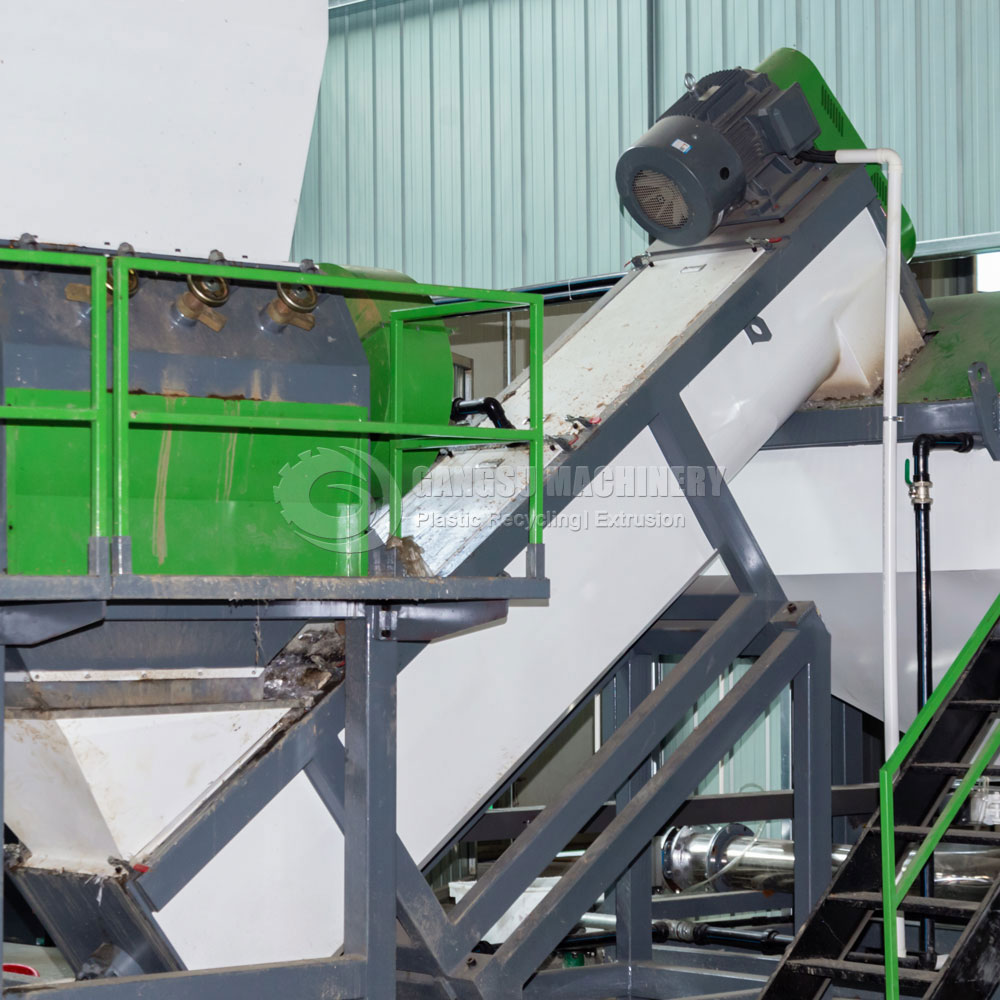

Friction washer

Used to rinse the rinsed material with high pressure water, high speed scrubbing and conveying to the rear equipment

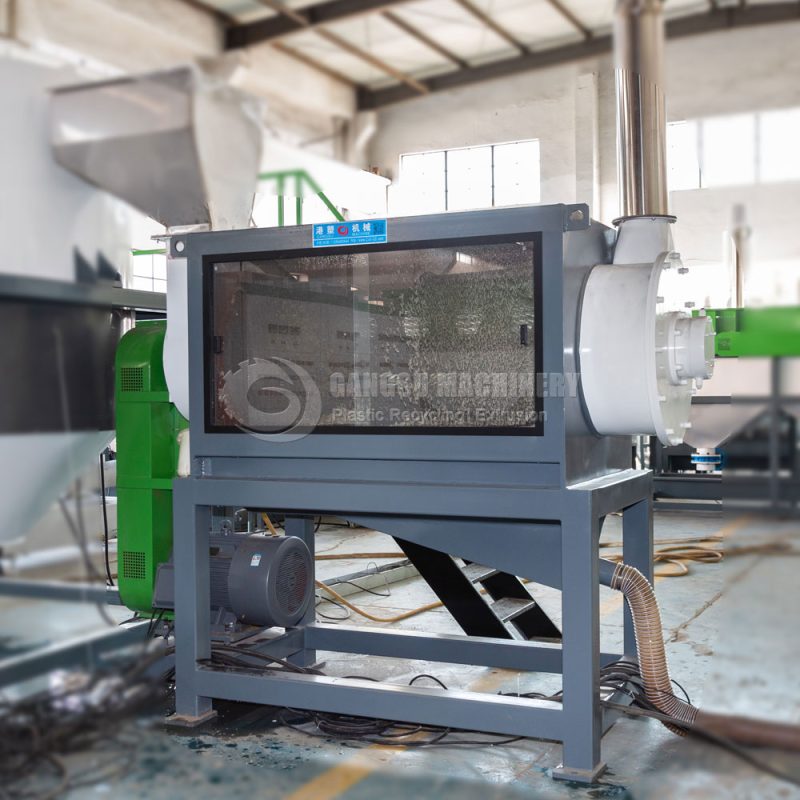

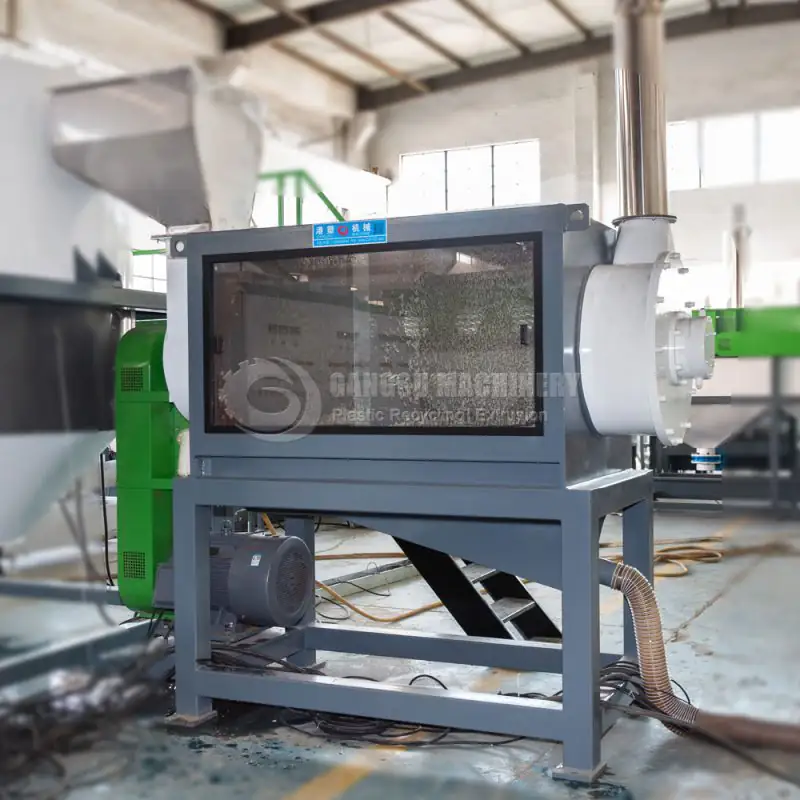

De-water machine

he centrifugal force generated by high-speed rotation removes most of the water from the material

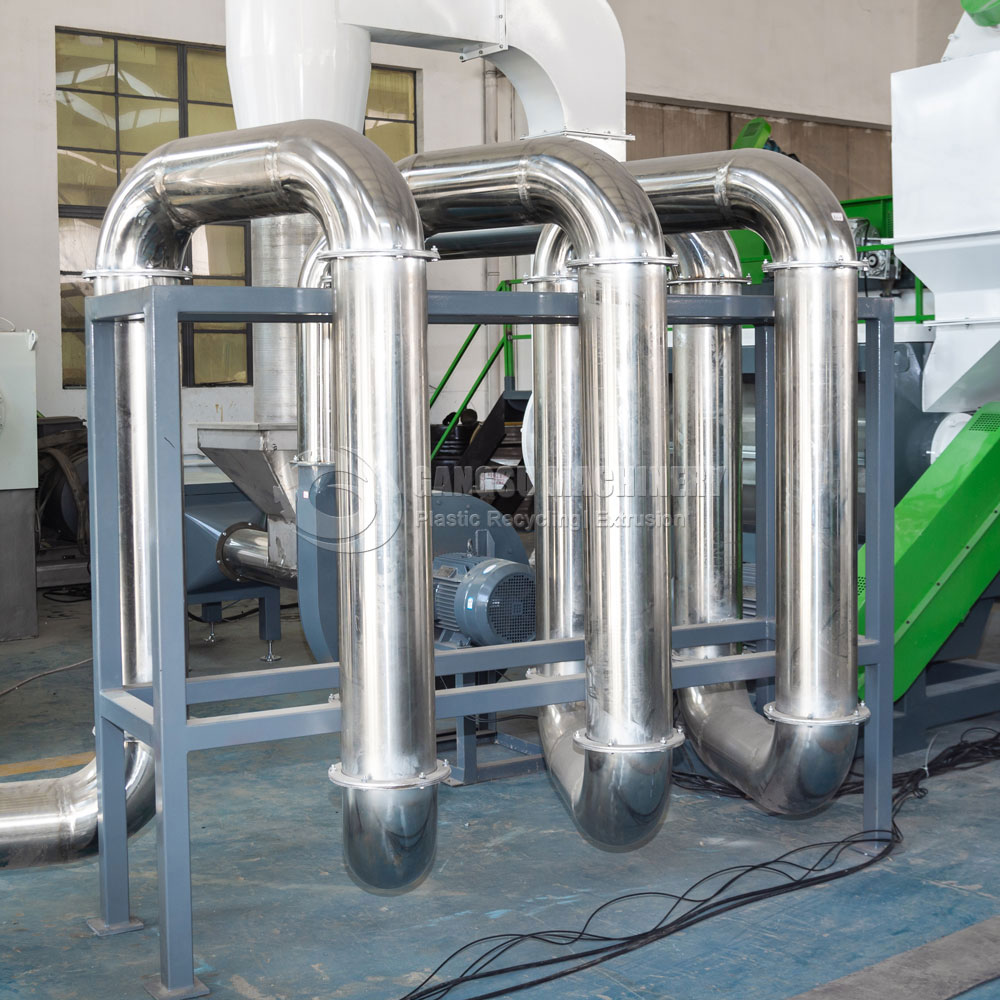

Zig-zag dryer system

Heating of the air in the pipeline to further reduce the moisture content of the material

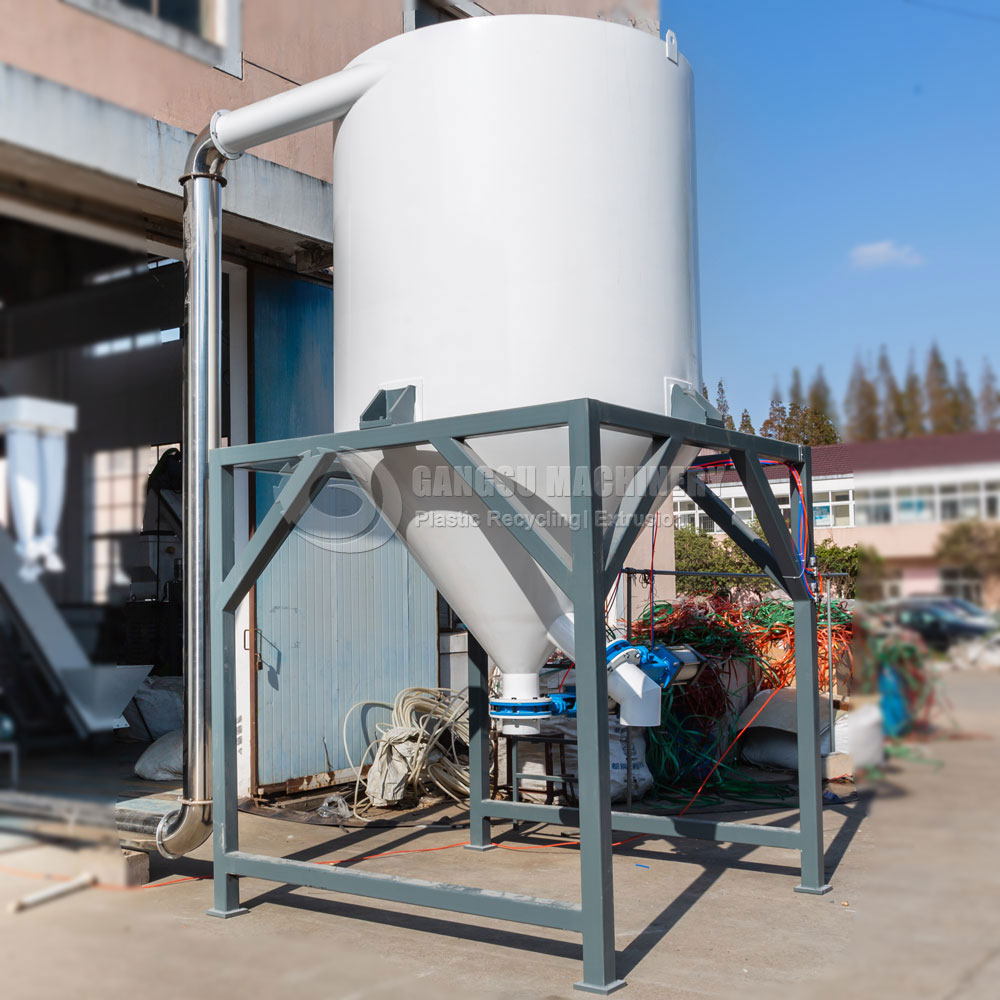

Silo

For storage of clean and dry plastic film flaks

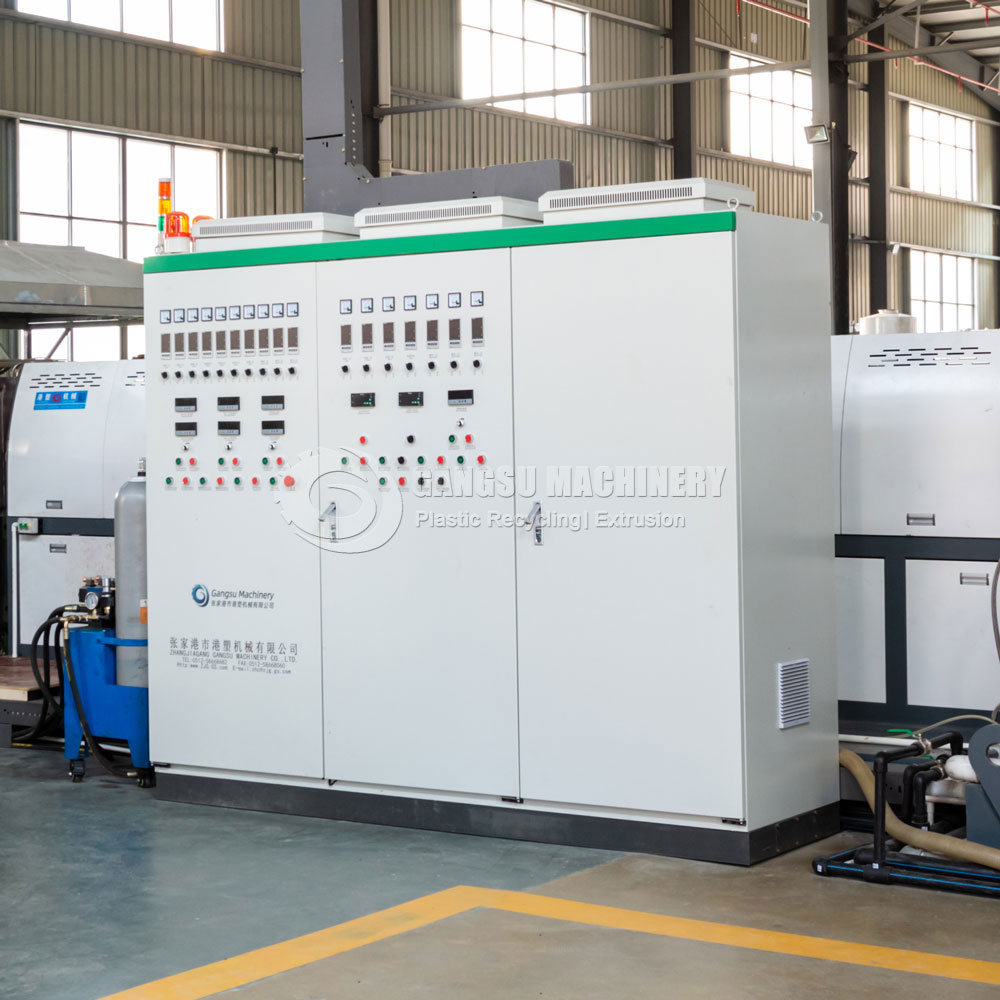

Control cabinet

For controlling the washing line and observing the operation of each piece of machine

Reference project

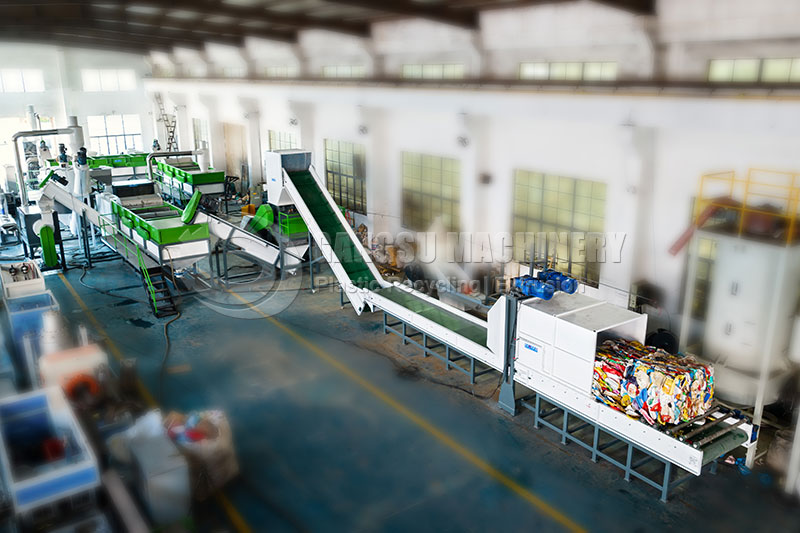

Turnkey Project Delivery Case

MaterialHDPE Waste Bottle
Output Capacity700KG/H
Floor Space450m²
Installation Power400-800KW
Water Consumption15 m²/H

GANGSU provides operation manual (English version) to instruct how to maintain and install and operate the machine, if any technical problem, the buyer can communicate with the seller by phone call and email. During warranty period, the seller will change spare parts (except for wearing parts like: blades, heating parts and small electrics etc.) for the buyer when parts worn-out free of charge. GANGSU will deliver the needed parts to you.
