Washing equipment with an inclined conveyor and fabric material

Washing & Recycling · 02

Industrial Film Washing Line

We provide efficient, reliable washing line equipment for the plastic film recycling industry. Whether your raw material is polypropylene (PP), polyethylene (LDPE/LLDPE) or any other plastic film, our complete line of plastic film washing equipment will allow you to process loose or bulk plastic film into clean, dry plastic flakes for pelletizing or sale.

Rated output: 300–1,000 kg/h
Final product: Clean, dry flakes
Input material: Stretch film, PE
Delivery: Turnkey project

Request a quote View specifications

Configured to your material, output and floor space
English operating manual and remote technical support
Spare parts supplied during and after warranty

Request a quote

01 / MATERIALS

Materials available for processing

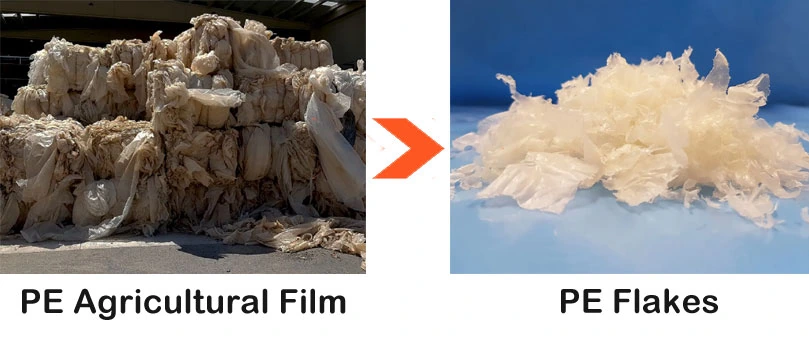

Discarded agricultural film transformed into flakes

02 / SPECIFICATIONS

Parameter overview

Technical specifications · values vary with material and configuration
Output Capacity (kg/h)	Installation Power (kw)	Floor Space(㎡）	Operators	Water Consumption(m³/h)
300	500	350	4	3
500	620	460	6	4
1000	700	500	6	5

03 / PROCESS

Brief description of cleaning process

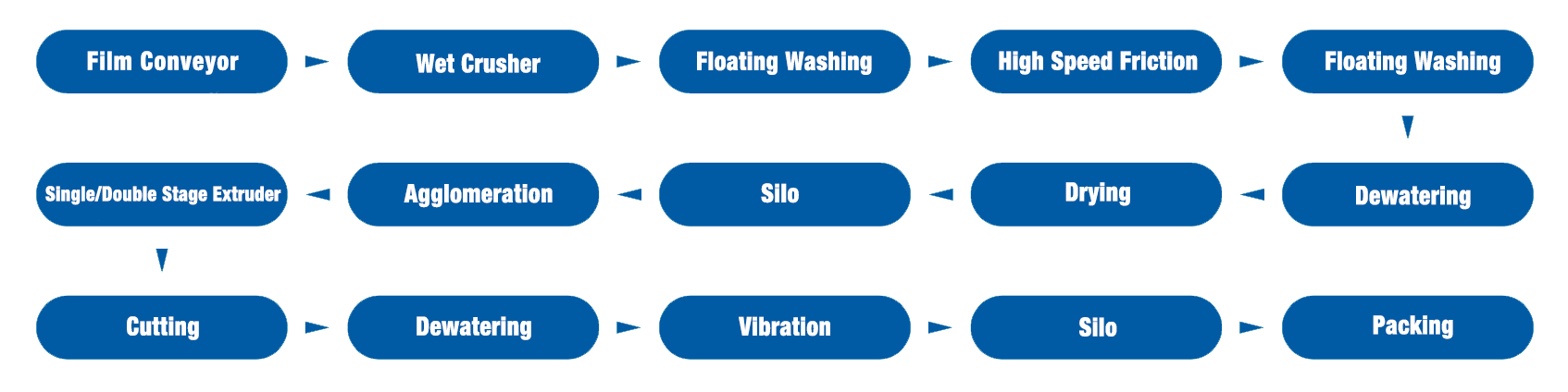

Flow diagram for film washing and pelletizing stages

04 / EQUIPMENT

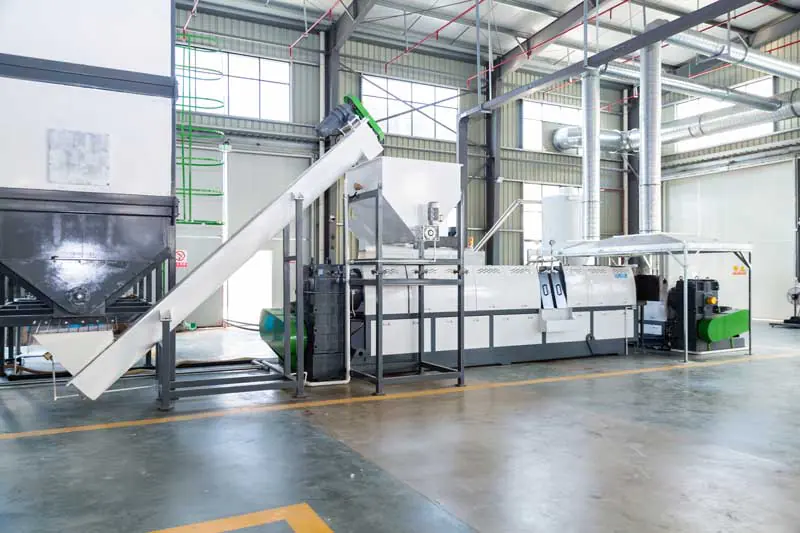

Cleaning line detail photo set

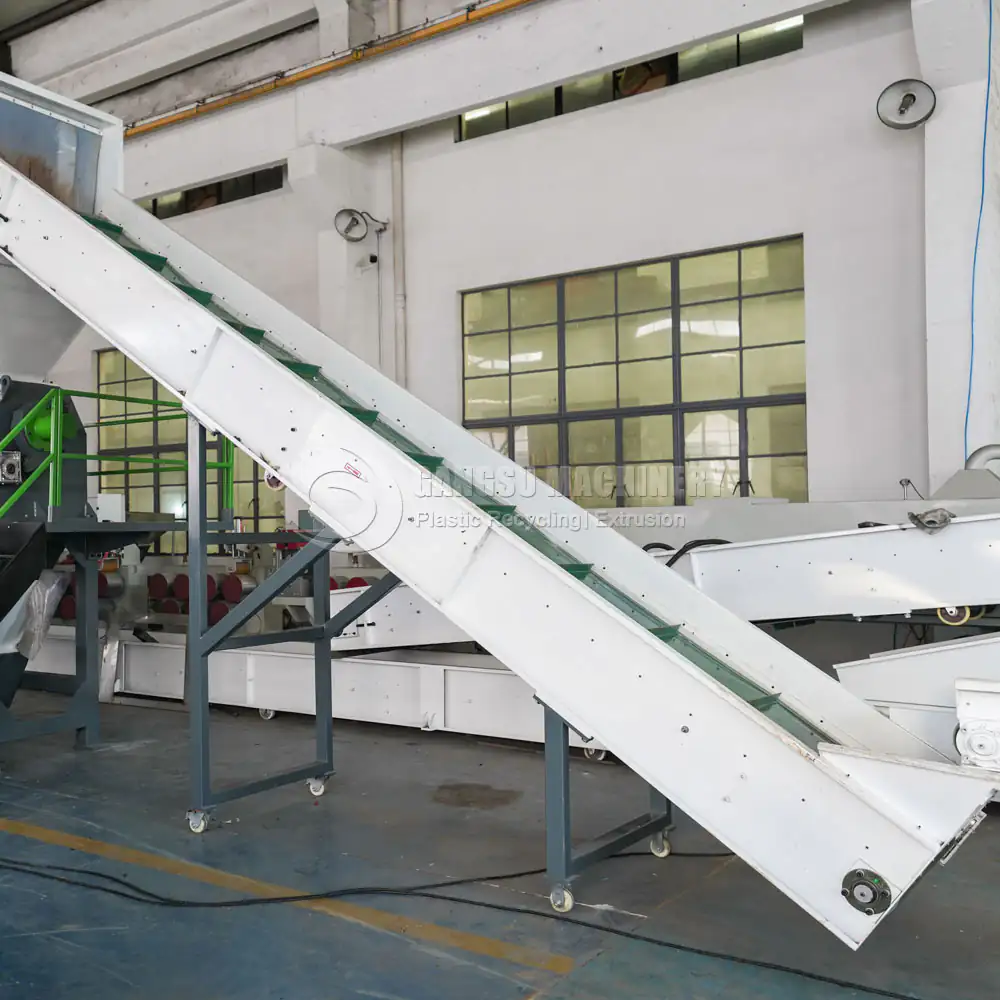

Belt conveyor

Used to convey film waste materials to the crusher in the back-end equipment

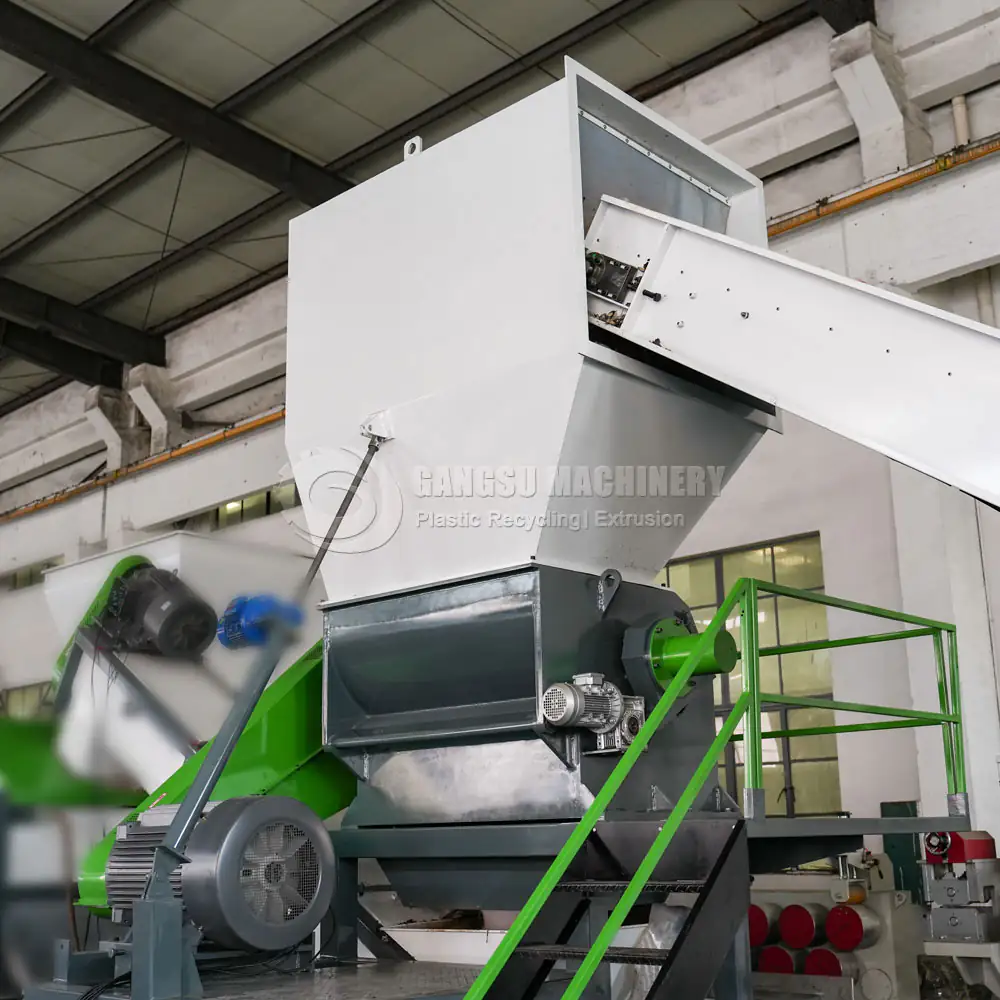

Plastic crusher

Used for crushing film or woven bag strapping into 80mm-120mm pieces

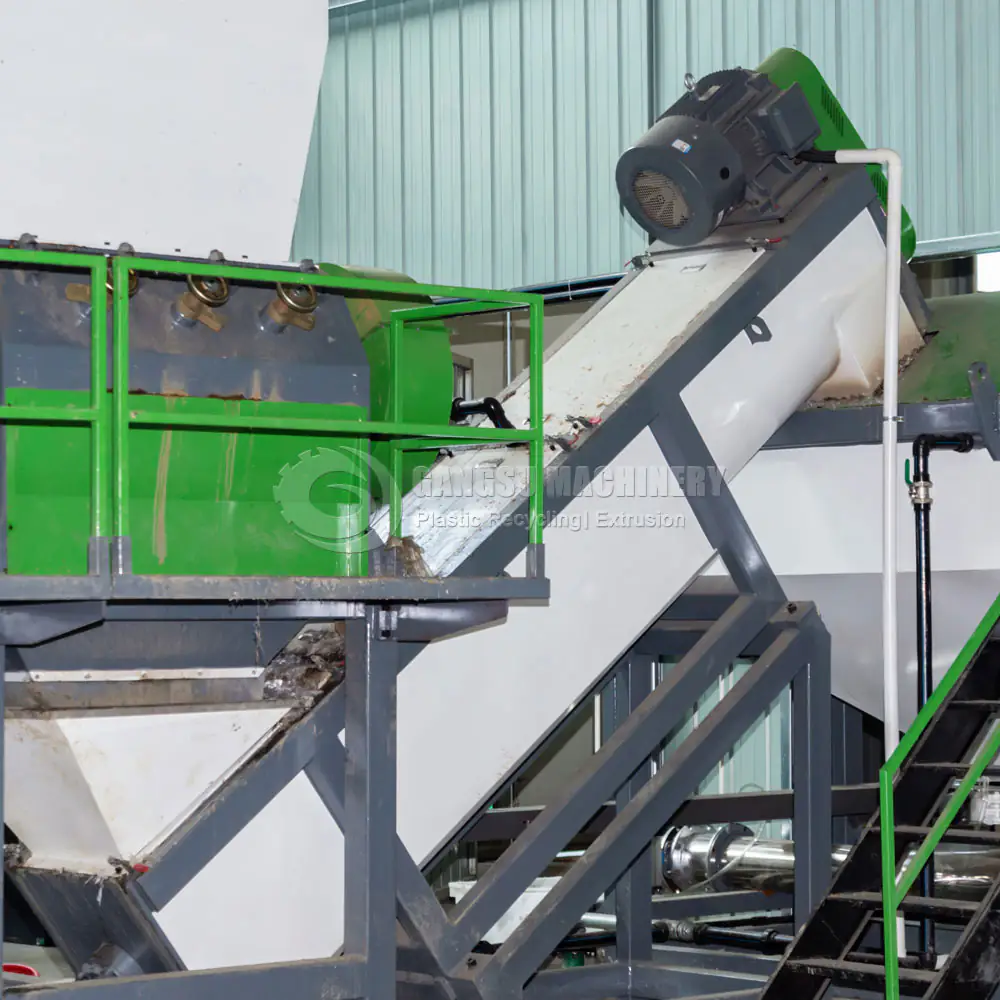

Screw feeder

This equipment is used to transport the rinsed material to the rear equipment

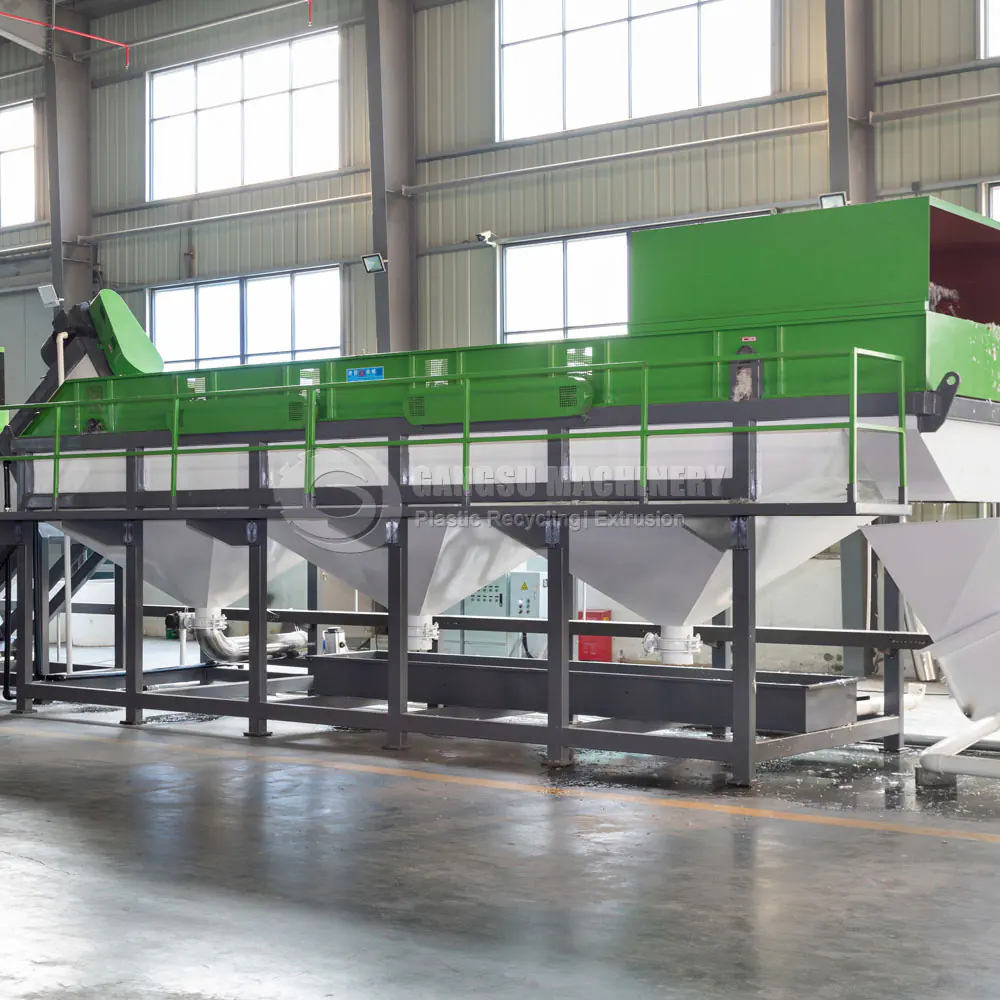

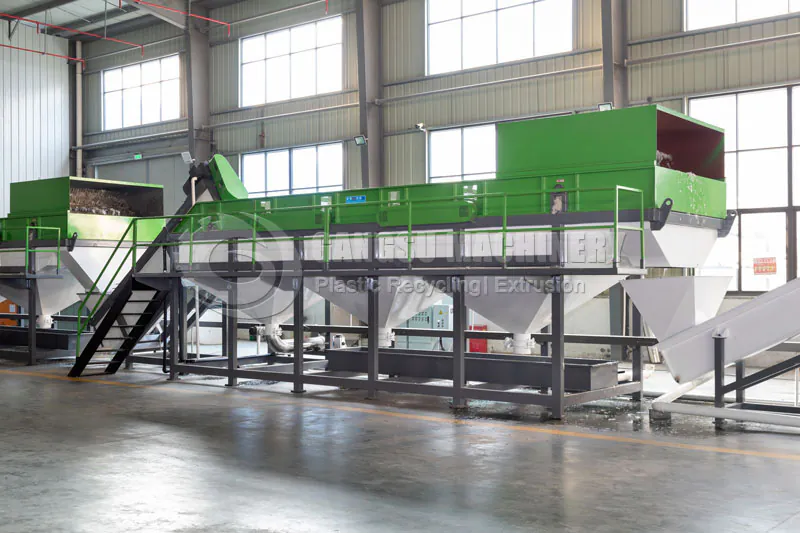

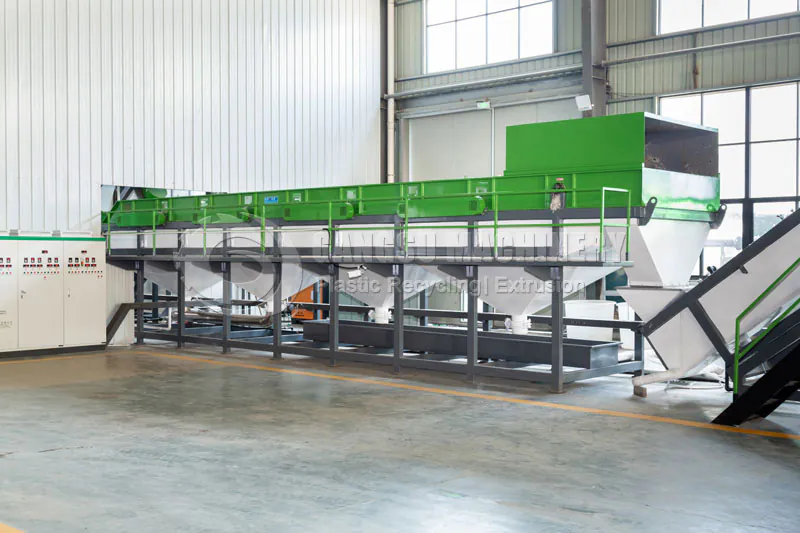

Floating tank

It is used to rinse the material for the first time to separate the sediment impurities in the material

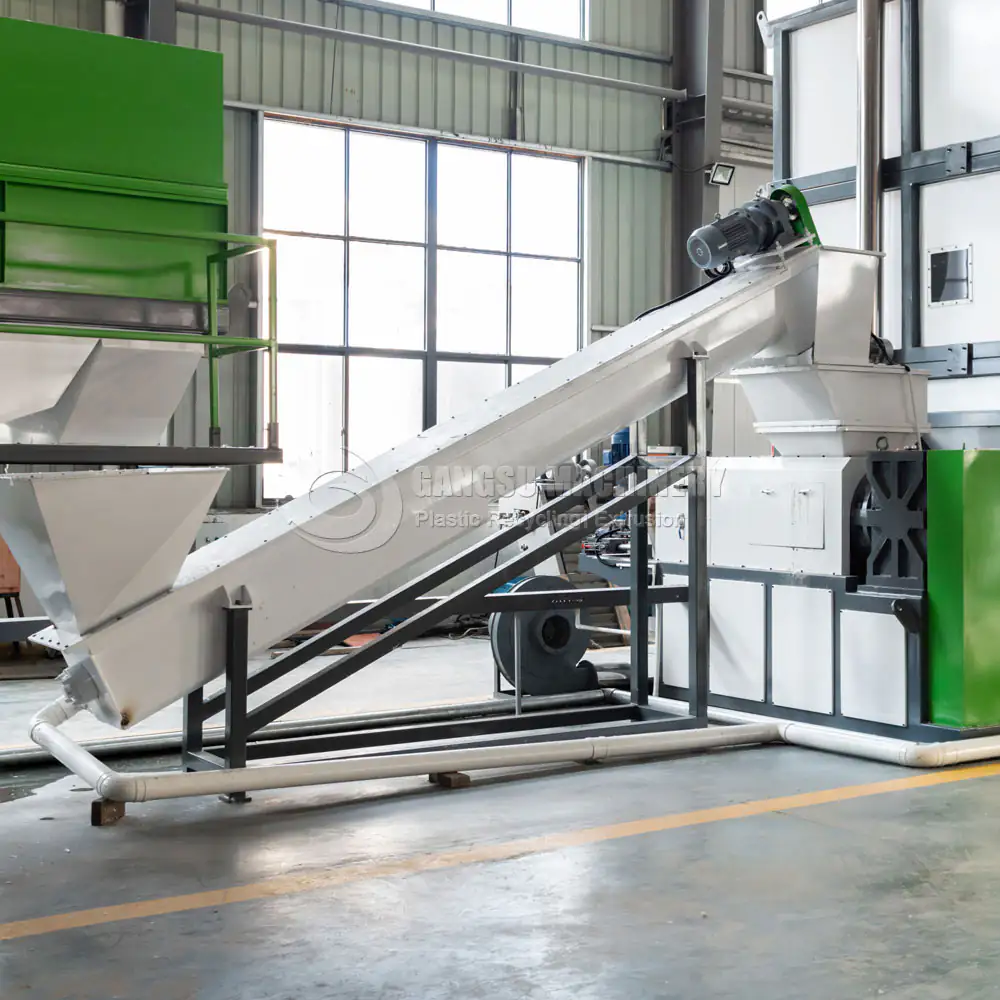

Friction washer

Used to rinse the rinsed material with high pressure water, high speed scrubbing and conveying to the rear equipment

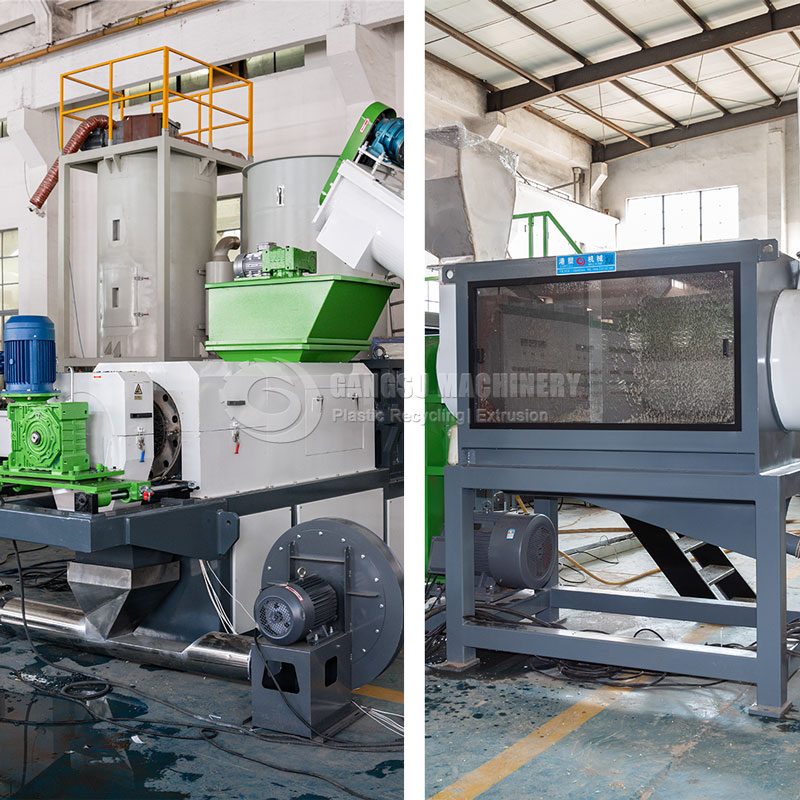

Moisture removal/drying systems

Materials dewatered via squeeze dryers or dewatering machines. We'll assess your needs and guide in selecting the suitable method.

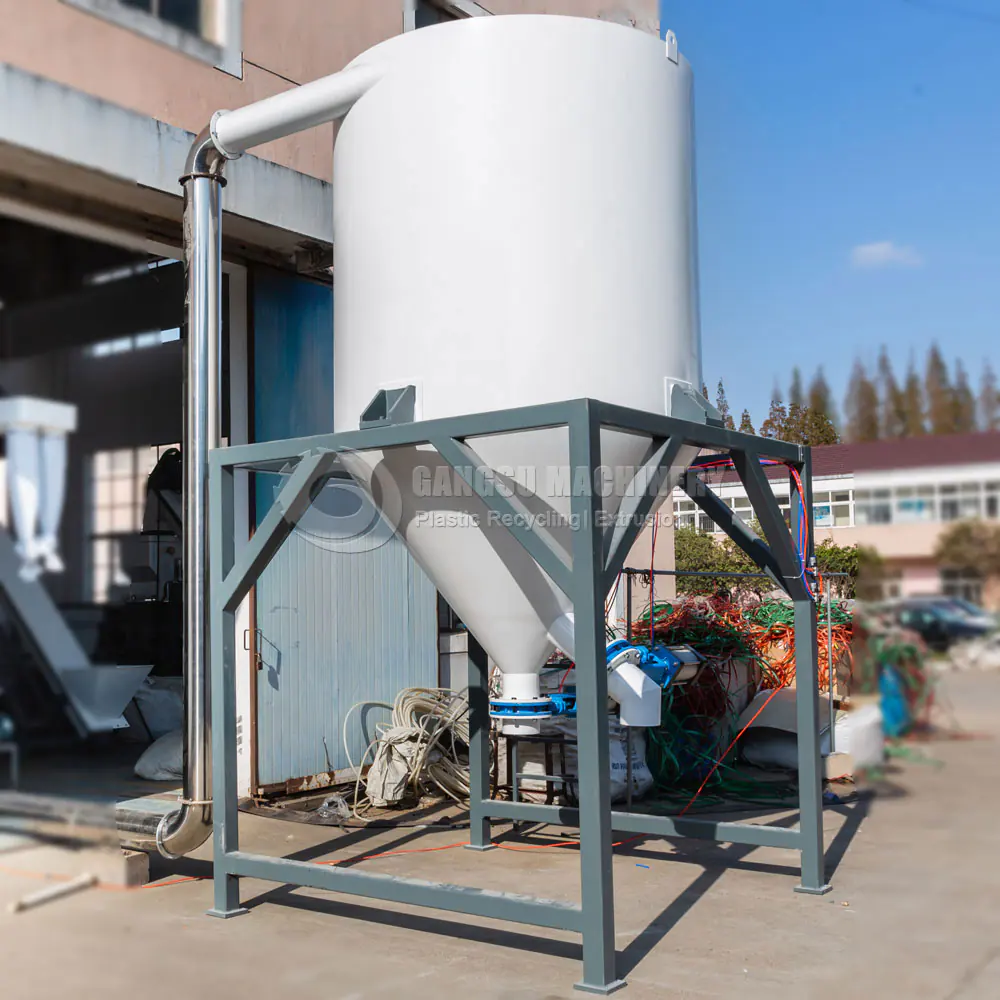

Silo

For storage of clean and dry plastic film flaks

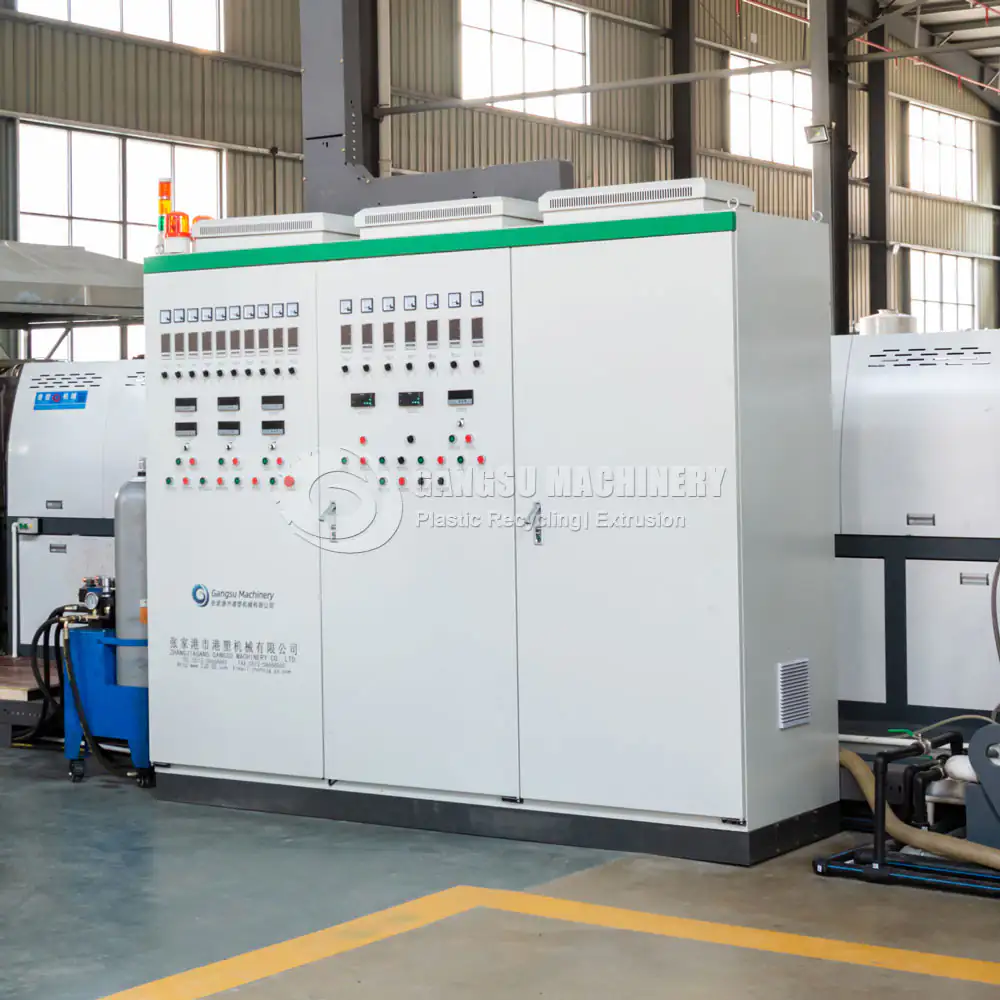

Control cabinet

For controlling the washing line and observing the operation of each piece of machine

Reference project

Turnkey Project Delivery Case

MaterialLDPE Agricultural Film
Output Capacity1000KG/H
Floor Space500 m²
Installation Power725KW
Water Consumption35 m²/H

GANGSU provides operation manual (English version) to instruct how to maintain and install and operate the machine, if any technical problem, the buyer can communicate with the seller by phone call and email. During warranty period, the seller will change spare parts (except for wearing parts like: blades, heating parts and small electrics etc.) for the buyer when parts worn-out free of charge. GANGSU will deliver the needed parts to you.
